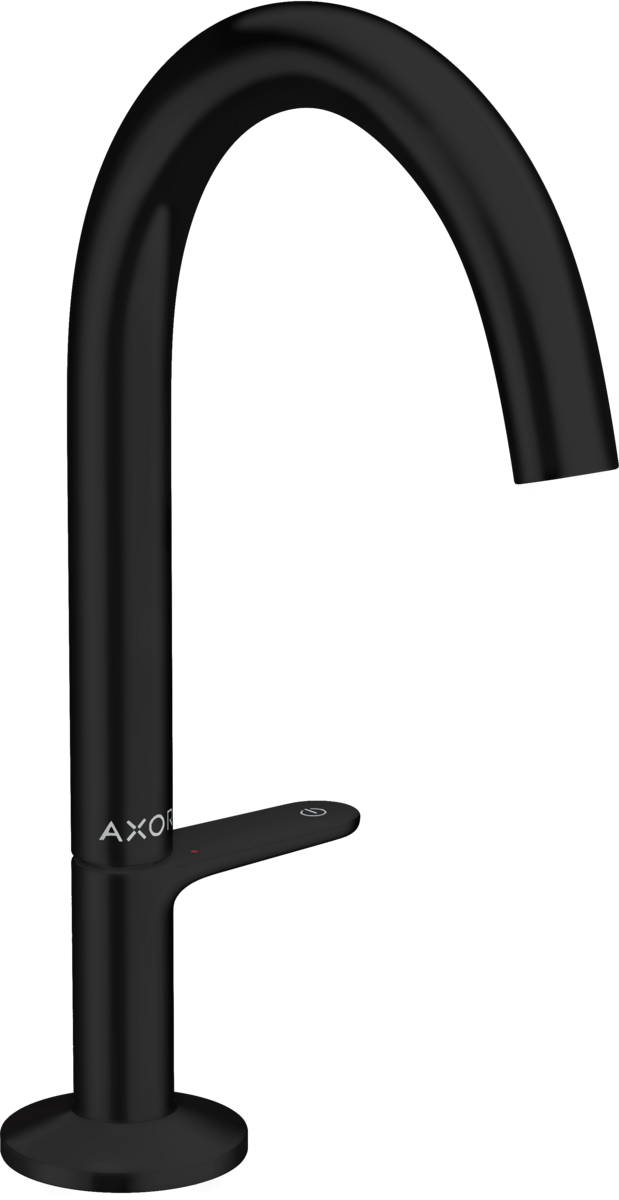

AXOR OneBasin mixer Select 170 with push-open waste set 2 ticks
Art. no. 48020679
Please try again.
Optional accessories
Spare parts for build year 10/21
| Item no. |
|---|
| b | fixation extension 35 mm13898000 |
| a | push-open waste set50100000 |
| 1 | spout cpl.94234670 |
| 2 | aerator M16,5x1 (3,8 l/min)92920000 |
| 3 | special tool98987000 |
| 4 | handle94238670 |
| 5 | 94259000 |
| 6 | escutcheon93998670 |
| 7 | O-Ring 46x298195000 |
| 8 | O-ring 24x2,598145000 |
| 9 | O-ring 7x1,598422000 |
| 10 | O-ring 8x298112000 |
| 11 | fixing set (Ø 32)13961000 |
| 12 | lever collar97548000 |
| 13 | cartridge, assy92529000 |
| 14 | connection angel94262000 |
| 15 | connection hose 450 mm M8x0,75 G3/893405000 |
| 16 | non return valve DW 1096456000 |
| 17 | filter packing95291000 |
| 18 | set of adapters93395000 |
Innovative technologies
More pleasure, more efficiency
Excellent user comfort
Saving energy made easy
Saving resources with pleasure
Select for faucets
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
ComfortZone
Excellent user comfort
More elbow room when washing hands, a comfortable way to wash hair or just fill containers: The better the tap fits the space, the more flexible the options become. We call the area between the tap and the ceramics the ComfortZone because you can use it however you like.
CoolStart
Saving energy made easy
With this energy saving tap hot water only flows when the lever is actively moved - while standard taps already consume energy when the lever is opened in the basic position. CoolStart supports reducing the resources used, CO2 emissions and costs.
EcoSmart
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
Select
Select for faucets
Fans of intuitive design can start, pause and stop the flow of water at the touch of a button. The Select push button simplifies routines such as shaving or brushing teeth and can also be operated using the back of the hand or an elbow.
