AXOR Starck Organic

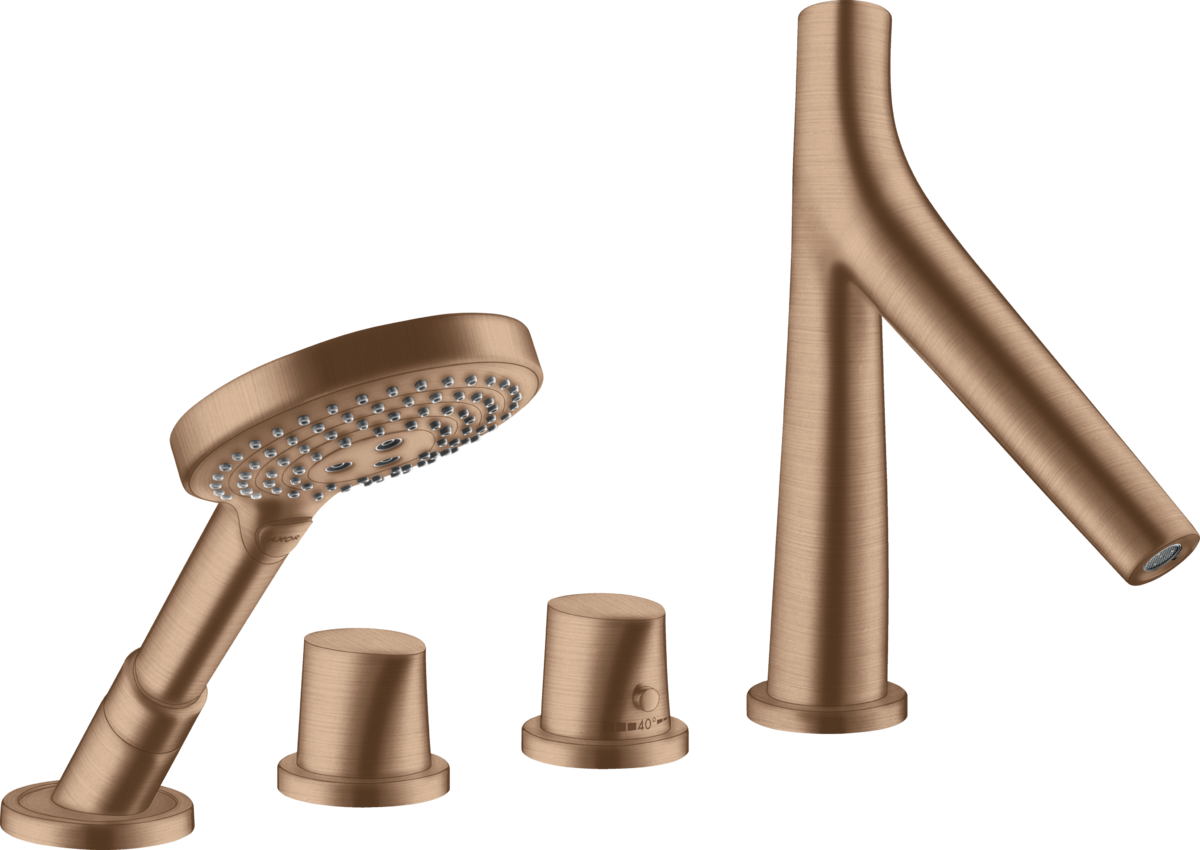

4-hole rim mounted thermostatic bath mixer

product.image.alt
 View in AR
 360° view
Finish Brushed Red Gold

Art. no. 12425310

Article features

  • consists of: 4-hole rim mounted bath mixer, hand shower, shower hose, shower holder
  • projection 190 mm
  • 2 functions
  • T32
  • spray type mixer: laminar spray
  • spray type hand shower: Rain, RainAir, WhirlAir
  • maximum pull-out length of hand shower: 1.10 m
  • maximum flow rate at 3 bar: 18 l/min
  • flow rate for bath spout at 3 bar: 18 l/min
  • flow rate of hand shower at 3 bar: 16 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • Safety stop at 40 °C
  • non-return valve
  • with automatic resetting
  • with silencer
  • connection dimension: DN15
  • connection type: basic set
  • height: 310.0 mm

Downloads

Planning data

Download all Planning data files

Technical drawings

Download all Technical drawings files

Instructions

Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required parts

Basic set for 4-hole rim mounted thermostatic bath mixer

Basic set for 4-hole rim mounted thermostatic bath mixer

Innovative technologies

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.

Always constant water temperature

Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.

Water flow control

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.

Thermostat

Always constant water temperature

Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

SafetyStop

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.

Spray Types

Gentle droplets enriched with air from the luxurious shower rain feel silky soft on the skin for an indulgent shower. Additionally, this spray type is efficient and thorough enough to rinse out shampoo.
Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
Rotating water sprays enriched with air to pleasantly shower away everyday tensions. Individual sprays of water flow around each other in a helical pattern, helping to relieve tension with their extremly gentle massaging action.

RainAir

Gentle droplets enriched with air from the luxurious shower rain feel silky soft on the skin for an indulgent shower. Additionally, this spray type is efficient and thorough enough to rinse out shampoo.

Rain

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

WhirlAir

Rotating water sprays enriched with air to pleasantly shower away everyday tensions. Individual sprays of water flow around each other in a helical pattern, helping to relieve tension with their extremly gentle massaging action.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
