AXOR Starck Organic

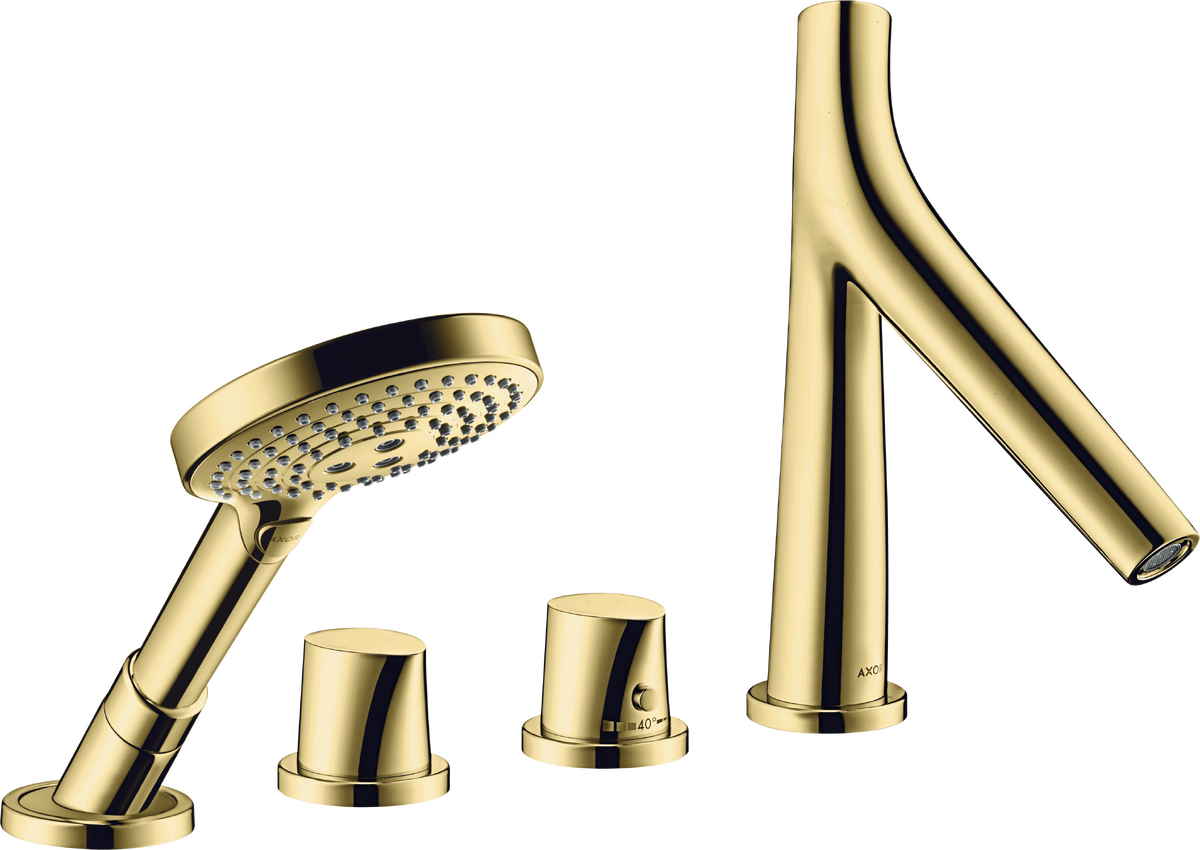

4-hole rim mounted thermostatic bath mixer

4-hole rim mounted thermostatic bath mixer
 View in AR
 360° view
Finish Polished Brass

Art. no. 12425930

Article features

  • consists of: 4-hole rim mounted bath mixer, hand shower, shower hose, shower holder
  • projection 190 mm
  • 2 functions
  • thermostat cartridge
  • spray type mixer: LaminarSpray
  • spray type hand shower: Rain, RainAir, WhirlAir
  • maximum pull-out length of hand shower: 1.10 m
  • maximum flow rate at 3 bar: 18 l/min
  • flow rate for bath spout at 3 bar: 18 l/min
  • maximum flow rate of hand shower at 3 bar: 16 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • non-return valve
  • with automatic resetting
  • with silencer
  • connection dimension: DN15
  • connection type: basic set
  • rim mounted

Downloads

Installation information

Download all files
Information
Please note that other products are required to install the product.

Required parts

Basic set for 4-hole rim mounted thermostatic bath mixer

Basic set for 4-hole rim mounted thermostatic bath mixer

Innovative technologies

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.
Always constant water temperature

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.
For mindful use of water

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.
Safety lock at over 40 °C

Thermostat

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.

Water flow control

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.

SafetyStop

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.

Spray Types

Gentle droplets enriched with air from the luxurious shower rain feel silky soft on the skin for an indulgent shower. Additionally, this spray type is efficient and thorough enough to rinse out shampoo.
Refreshing shower rain designed for everyday use. The focused spray invigorates while remaining efficient, ensuring a thorough rinse of shampoo and a refreshing cleanse.
Rotating water sprays enriched with air to pleasantly shower away everyday tensions. Individual sprays of water flow around each other in a helical pattern, helping to relieve tension with their extremly gentle massaging action.
WhirlAir

RainAir

Gentle droplets enriched with air from the luxurious shower rain feel silky soft on the skin for an indulgent shower. Additionally, this spray type is efficient and thorough enough to rinse out shampoo.

Rain

Refreshing shower rain designed for everyday use. The focused spray invigorates while remaining efficient, ensuring a thorough rinse of shampoo and a refreshing cleanse.

WhirlAir

Rotating water sprays enriched with air to pleasantly shower away everyday tensions. Individual sprays of water flow around each other in a helical pattern, helping to relieve tension with their extremly gentle massaging action.

WhirlAir

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
