hansgrohe Metropol3-hole rim mounted single lever bath mixer with lever handle for Secuflex

Art. no. 32550000
Please try again.
Please try again.
Article features
- consists of: 3-hole rim mounted single lever bath mixer, hand shower, shower holder
- 2 functions
- projection: 197 mm
- spray type mixer: normal spray
- spray type hand shower: Rain, RainAir, Whirl
- maximum pull-out length of hand shower: 1.10 m
- maximum flow rate at 3 bar: 19 l/min
- flow rate for bath spout at 3 bar: 19 l/min
- flow rate of hand shower at 3 bar: 15 l/min
- ceramic cartridge
- temperature limitation adjustable
- connection dimension: DN15
- connection type: basic set
- installation on bath rim
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- no additional maintenance opening required
Downloads
Planning data
Technical drawings
Instructions
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Information

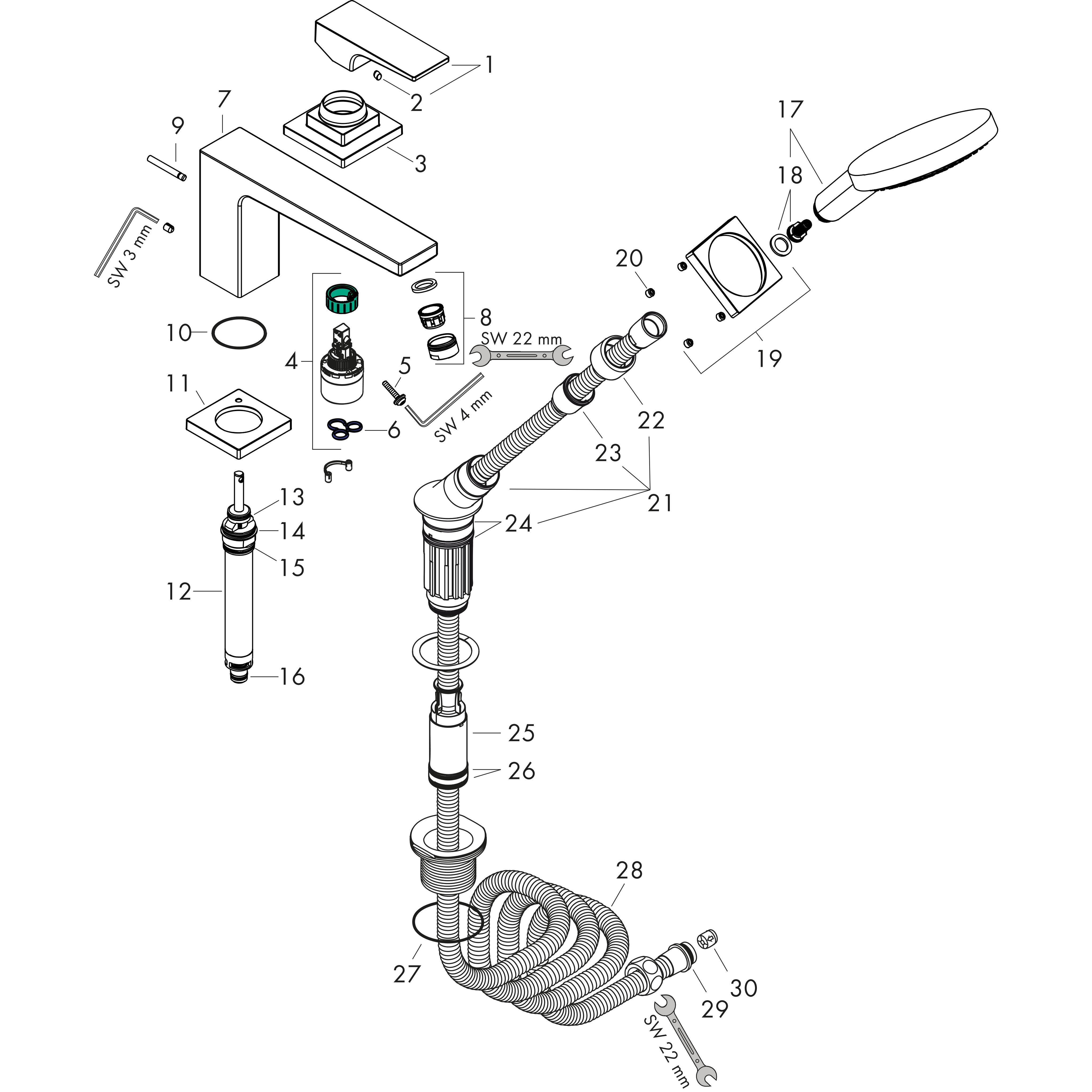

Spare parts for build year 04/17
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
a | concealed item13437180 |
1 | handle93075000 |
2 | screw cover96338000 |
3 | escutcheon93138000 |
4 | cartridge, assy92730000 |
5 | locking screw for handle95140000 |
6 | seal95008000 |
7 | spout cpl.93151000 |
8 | aerator M24x1 (30 l/min)96512000 |
9 | diverter knob98707000 |
10 | O-ring 41x1,598168000 |
11 | escutcheon for spout93152000 |
12 | selector assy96775000 |
13 | O-Ring 14x2,598189000 |
14 | O-Ring 23x2,598183000 |
15 | O-Ring 22x298185000 |
16 | O-ring 9x2,598217000 |
17 | handshower26530000 |
18 | filter insert97708000 |
19 | escutcheon for shower holder93154000 |
20 | screw cover95704000 |
21 | shower holder, assy95996000 |
22 | nut97584000 |
23 | insert for shower holder96942000 |
24 | O-ring 38x298396000 |
25 | hose brake98656000 |
26 | O-Ring 28x298194000 |
27 | O-ring 58x398202000 |
28 | shower hose 2,00 m94148000 |
29 | O-ring 11x298127000 |
30 | set of non return valves DW 1594074000 |
Innovative technologies
More pleasure, more efficiency
Less limescale, more joy
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
Spray Types
RainAir
Gentle droplets enriched with air from the luxurious shower rain feel silky soft on the skin for an indulgent shower. Additionally, this spray type is efficient and thorough enough to rinse out shampoo.
Rain
Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
Whirl
Rotating water sprays to pleasantly shower away everyday tensions. Individual sprays of water flow around each other in a helical pattern, helping to relieve tension with their gentle massaging action.
Five-year manufacturer’s guarantee
5
year manufacturer's guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
