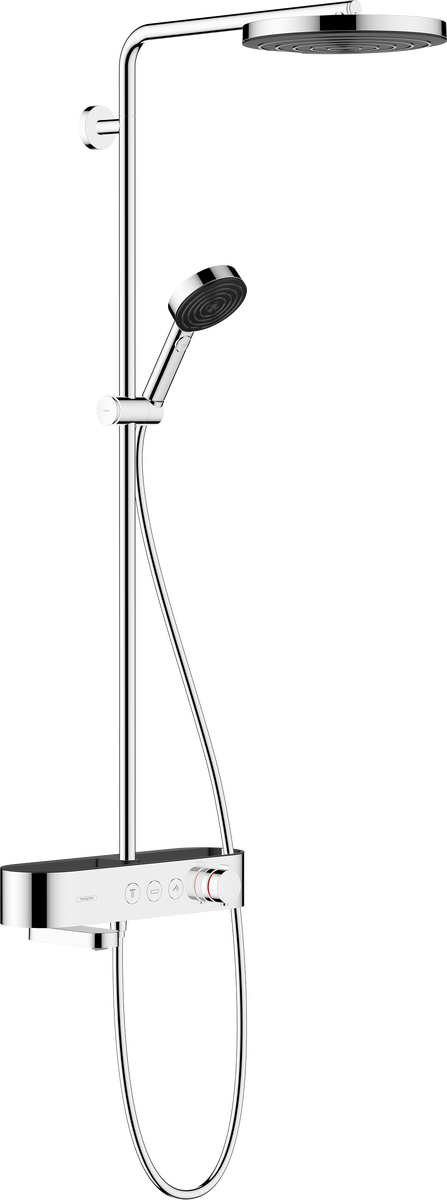

hansgrohe Pulsify S
Showerpipe 260 1jet 2 ticks with bath thermostat ShowerTablet Select 400

Showerpipe 260 1jet 2 ticks with bath thermostat ShowerTablet Select 400
 View in AR
 360° view
Finish Chrome

Art. no. 24231009

Article features

  • consists of: overhead shower, hand shower, bath thermostat, shower bar, slider, shower hose
  • overhead shower Pulsify 260 1jet
  • shower head size overhead shower: 260 mm
  • spray type overhead shower: PowderRain
  • spray disc surface: graphite
  • Fast Drain empties the overhead shower from an angle of 10°
  • removable shower head
  • shelf made of plastic
  • surface shelf: graphite
  • flow rate PowderRain spray at 3 bar: 5 l/min
  • spray type hand shower: PowderRain, IntenseRain, Massage spray
  • flow rate of hand shower at 3 bar: 5 l/min
  • maximum flow rate for Showerpipe at 3 bar: 22,5 l/min
  • max. operating pressure: 10 bar
  • ball-joint: overhead shower angle adjustable
  • height-adjustable slider with locking push-button slider
  • slider rotatable on the pipe for left or right operation
  • shower arm length overhead shower: 398 mm
  • swivel shower arm
  • CoolContact thermostat: Prevents the housing from heating up, making showering even safer
  • thermostat ShowerTablet Select 400
  • SafetyStop at 40°C
  • convenient diversion via Select button
  • simultaneous utilization of 3 functions
  • suitable for continuous flow water heaters
  • mounting type: exposed installation
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • pipe can be shortened in height
  • intrinsically safe against backflow
  • shower bar diameter: 22 mm
  • Thermostat is delivered with buttons overhead shower, bath tub and hand shower
  • 3 functions
  • WELS SGP 2 Ticks SHT-2023/039991/SLS
  • WELS SGP 2 Ticks SHT-2023/039991/SLS

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Installation example

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

Safe and indulgent showering

This thermostatic mixer is fitted with innovative cooling technology to prevent it from getting too hot, keeping it nice and cool to the touch. For care-free showering with no need to keep a safe distance or fear scalding.

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Minimizes annoying dripping

An efficient and convenient way to empty the shower head and significantly reduce dripping after showering. So that nobody and no shower surface gets unintentionally caught in the rain once dry.

Bath tub filler can be folded away

For lovers of minimalist and safe bathroom solutions: The water inlet on the thermostatic bath mixer can be swivelled by 90° to keep it out of sight under the tap. For a clean look and more elbow room when enjoying a bath or shower.

Always constant water temperature

Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

CoolContact

Safe and indulgent showering

This thermostatic mixer is fitted with innovative cooling technology to prevent it from getting too hot, keeping it nice and cool to the touch. For care-free showering with no need to keep a safe distance or fear scalding.

Select

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

XXL Performance

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Fast Drain

Minimizes annoying dripping

An efficient and convenient way to empty the shower head and significantly reduce dripping after showering. So that nobody and no shower surface gets unintentionally caught in the rain once dry.

Rotatable Bath Spout

Bath tub filler can be folded away

For lovers of minimalist and safe bathroom solutions: The water inlet on the thermostatic bath mixer can be swivelled by 90° to keep it out of sight under the tap. For a clean look and more elbow room when enjoying a bath or shower.

Thermostat

Always constant water temperature

Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Spray Types

Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.
Stimulating water sprays that wash away tiredness and immediately make the person feel nice and awake. The perfect and quick way to feel fit for the day ahead. The powerful spray also effortlessly rinses shampoo out of hair.
An invigorating spray that soothes and causes everyday stresses to flow down the drain. The water sprays are concentrated to ease tense spots. For an indulgent and relaxing spa-like shower, every single day.

PowderRain

Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.

IntenseRain

Stimulating water sprays that wash away tiredness and immediately make the person feel nice and awake. The perfect and quick way to feel fit for the day ahead. The powerful spray also effortlessly rinses shampoo out of hair.

Massage

An invigorating spray that soothes and causes everyday stresses to flow down the drain. The water sprays are concentrated to ease tense spots. For an indulgent and relaxing spa-like shower, every single day.

Awards

Red Dot product design award 2021

Red Dot product design award 2021

 One of the most prestigious awards in the world. Awarded for top quality, innovative form and function since 1955 (North Rhine-Westphalia Design Centre).
iF product design award 2021

iF product design award 2021

 Everything from cars to toothbrushes: products that receive this award rank among the best-designed products in the world. Globally recognised seal of quality, awarded by the International Forum Design since 1953.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
