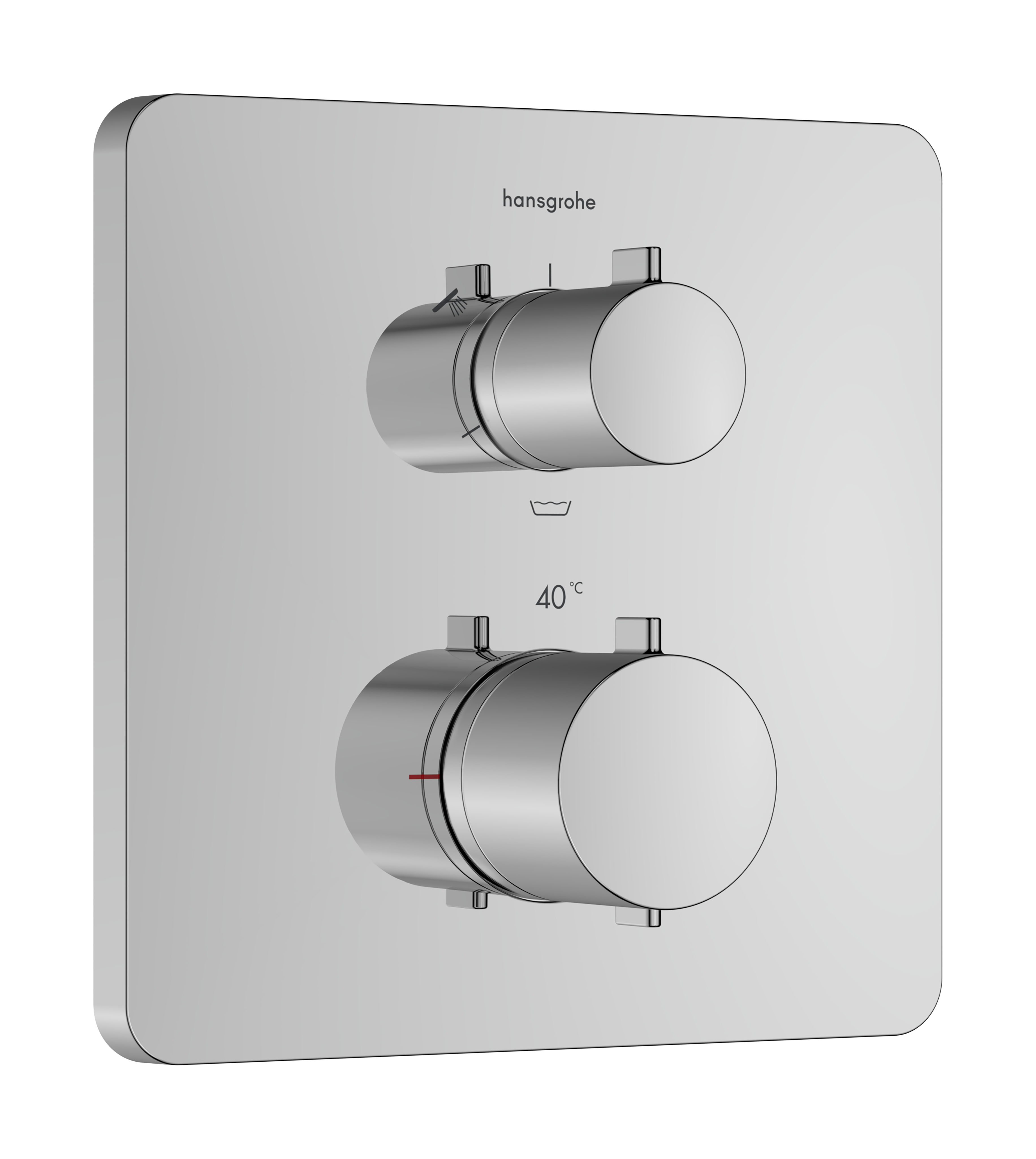

hansgrohe Multistat Q
Thermostat for concealed installation for 3 functions

Thermostat for concealed installation for 3 functions
 View in AR
 360° view
Finish Chrome

Art. no. 15847000

Article features

  • 3 functions
  • temperature and water flow control
  • thermostat cartridge, shut-off/ diverter valve
  • maximum flow rate at 1 bar: 13 l/min
  • maximum flow rate at 3 bar: 23,6 l/min
  • flow rate upper outlet: 24 l/min
  • flow rate left and right: 23,8 l/min
  • flow rate per function: 24 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • material handles: metal
  • connection type: basic set
  • marking handshower, Rain large, bath tub

Downloads

Installation information

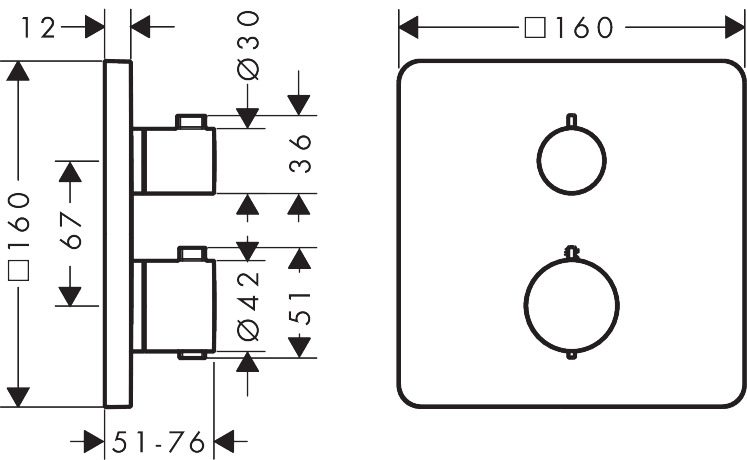

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Innovative technologies

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
Always constant water temperature

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.
For mindful use of water

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Safety lock at over 40 °C

Thermostat

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Water flow control

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.

SafetyStop

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
