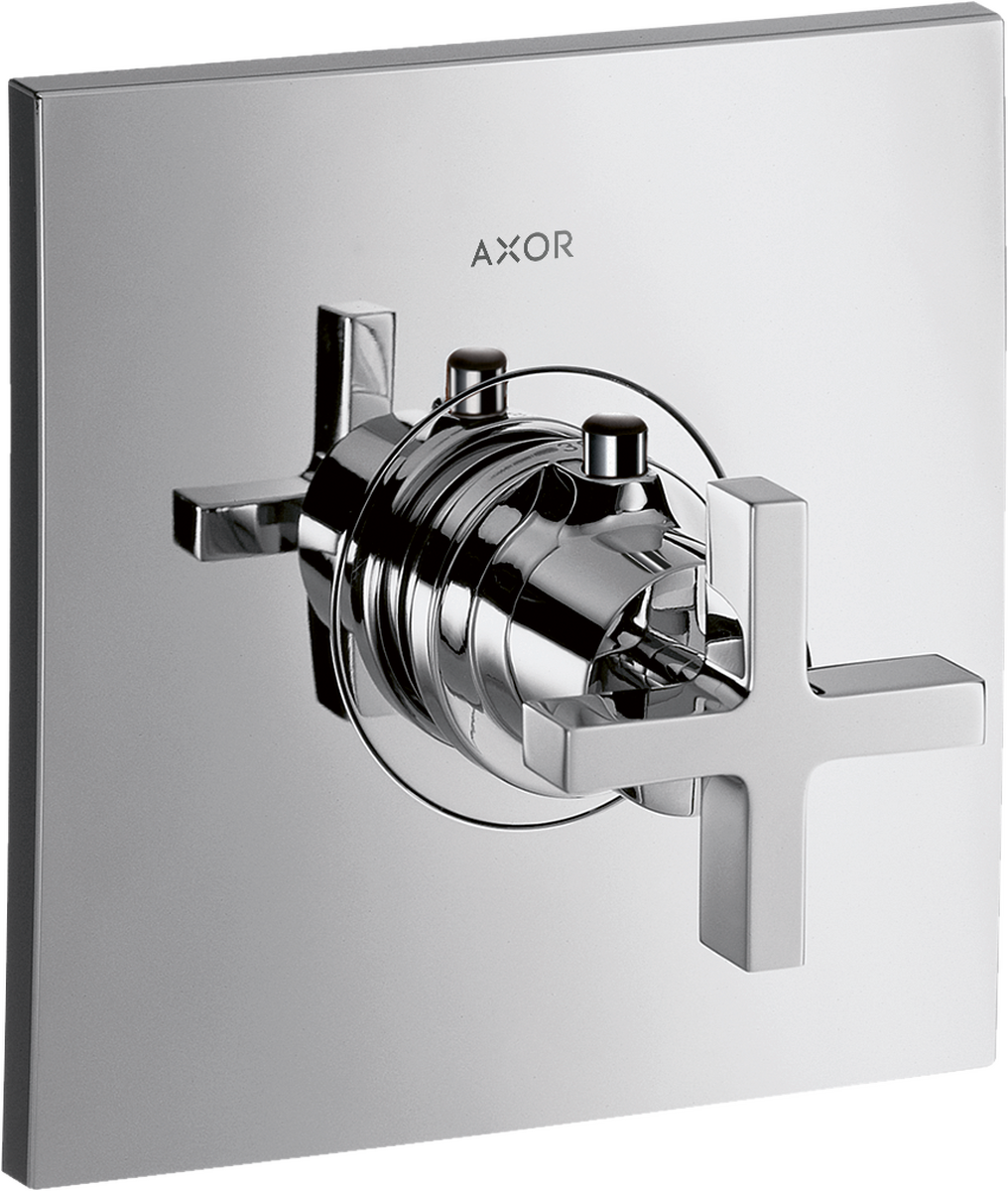

AXOR CitterioThermostat HighFlow for concealed installation with cross handle

View in AR
360° view
Change variant
{{points}}
Secure your talismans for this product.
Art. no. 39716000
as of
Excluding VAT
Remember product
Product noted
Product saved for 30 daysAdd to notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
Product added
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- thermostat cartridge
- maximum flow rate at 3 bar: 59 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- Safety stop at 40 °C
- temperature limitation adjustable
- with silencer
- connection type: basic set
Downloads
Technical drawings
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Information
Required parts
Spare parts for build year 02/12
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
b | adapter for exchanged connections93181000 |
a | concealed item01800180 |
1 | handle for thermostat39391000 |
2 | hollow set screw M5x1697666000 |
3 | adapter for handle96435000 |
4 | escutcheon96750000 |
5 | O-Ring 48x395508000 |
6 | sleeve97439000 |
7 | holder for escutcheon98793000 |
8 | set of fixing screws96454000 |
9 | thermostat cartridge96633000 |
10 | sealing set96636000 |
11 | set of screws96525000 |
12 | O-ring 16x298133000 |
13 | set of non return valves DW 1597350000 |
14 | filter98513000 |
15 | extension 25 mm13595000 |
16 | set of fixing screws97747000 |
17 | extension 22 mm97407000 |
18 | escutcheon height = 33 mm (when wall is not deep enough).14964000 |
19 | pushbutton97792000 |
20 | pushbutton red97212000 |
Innovative technologies
Always constant water temperature
Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure. For pleasant water enjoyment at all times.
Thermostat
Always constant water temperature
Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure. For pleasant water enjoyment at all times.
Five-year manufacturer’s guarantee
5
year manufacturer's guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
