AXOR ShowerSolutionsThermostatic module 360/120 for concealed installation square for 3 functions


1 / 2
View in AR
360° view
Change variant
{{points}}
Secure your talismans for this product.
Art. no. 10751000
as of
Log in now
As a logged in user, you can see additional information.
Remember product
Product noted
Product saved for 30 daysAdd to notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
Product added
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- 3 functions
- thermostat cartridge
- simultaneous use of several outlets
- min. operating pressure: 1,5 bar
- max. operating pressure: 10 bar
- safety stop at 40 °C
- temperature limitation adjustable
- non-return valve
- connection type: basic set
- connection dimension: DN20
Downloads
Technical drawings
Installation information
Scale drawing
Installation example
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Information
Required parts
Spare parts for build year 03/14
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
a | concealed item10750180 |
1 | escutcheon95317000 |
2 | seal95885000 |
3 | handle92338000 |
4 | handle fixing set94184000 |
5 | adapter for handle95153000 |
6 | O-ring 26x298147000 |
7 | fixing set96393000 |
8 | handle for thermostat95316000 |
9 | adapter for handle98701000 |
10 | safety set for temperature control97334000 |
11 | sleeve95331000 |
12 | O-ring 28x2,598209000 |
13 | thermostat cartridge96633000 |
14 | O-ring 48x498414000 |
15 | set of non return valves DW 1597350000 |
16 | filter97973000 |
17 | extension 25 mm10790000 |
18 | handle95423000 |
19 | extension 25 mm96370000 |

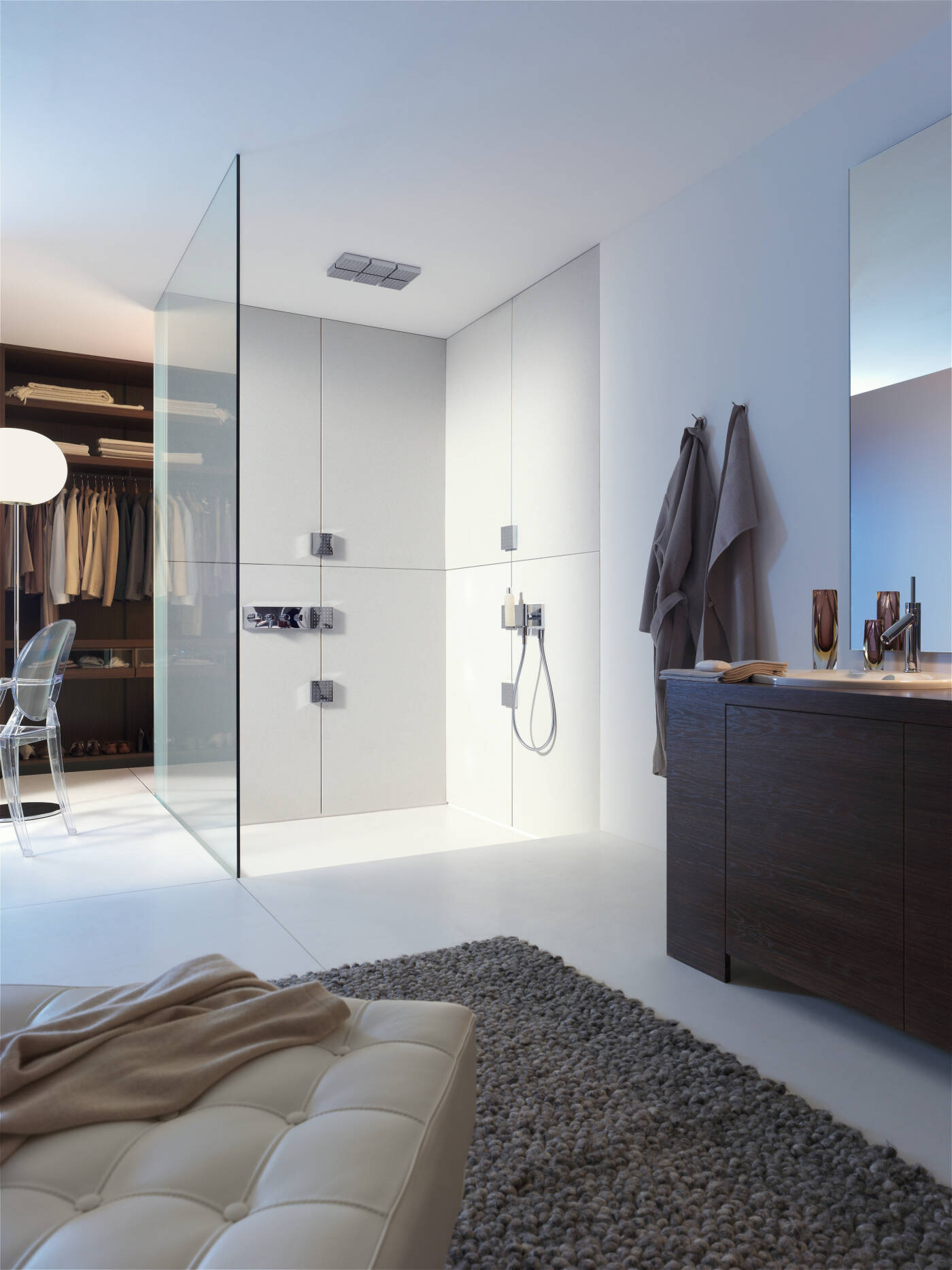

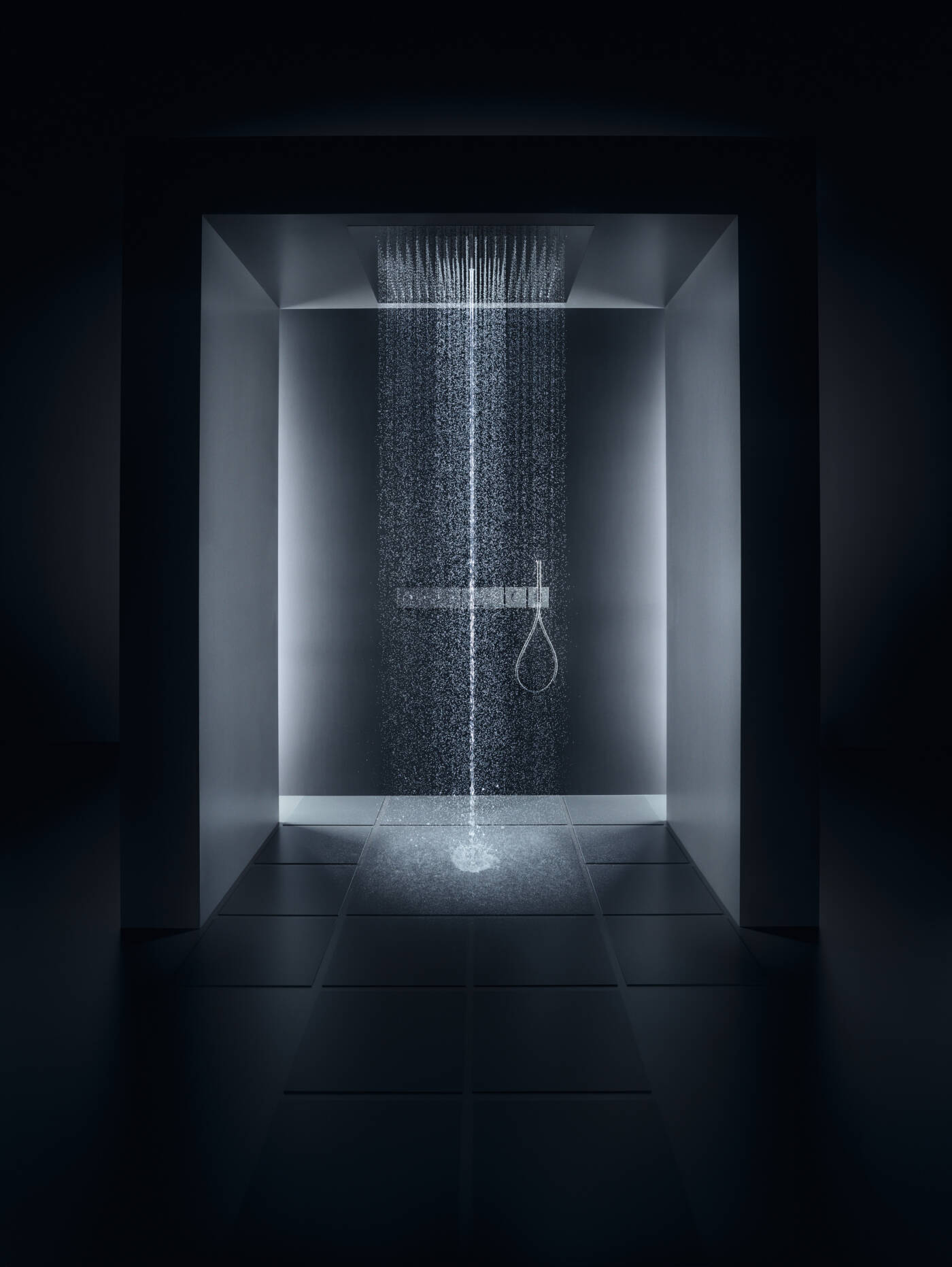

Impressions
