AXOR Citterio3-hole basin mixer 170 with spout 140 mm, lever handles, escutcheons and pop-up waste set 2 ticks

Art. no. 39141009
Please try again.
Please try again.
Article features
- consists of: 3-hole basin mixer, waste set
- ComfortZone 170
- projection: 140 mm
- spout height: 166 mm
- handle variant: lever handle
- spray type: normal spray

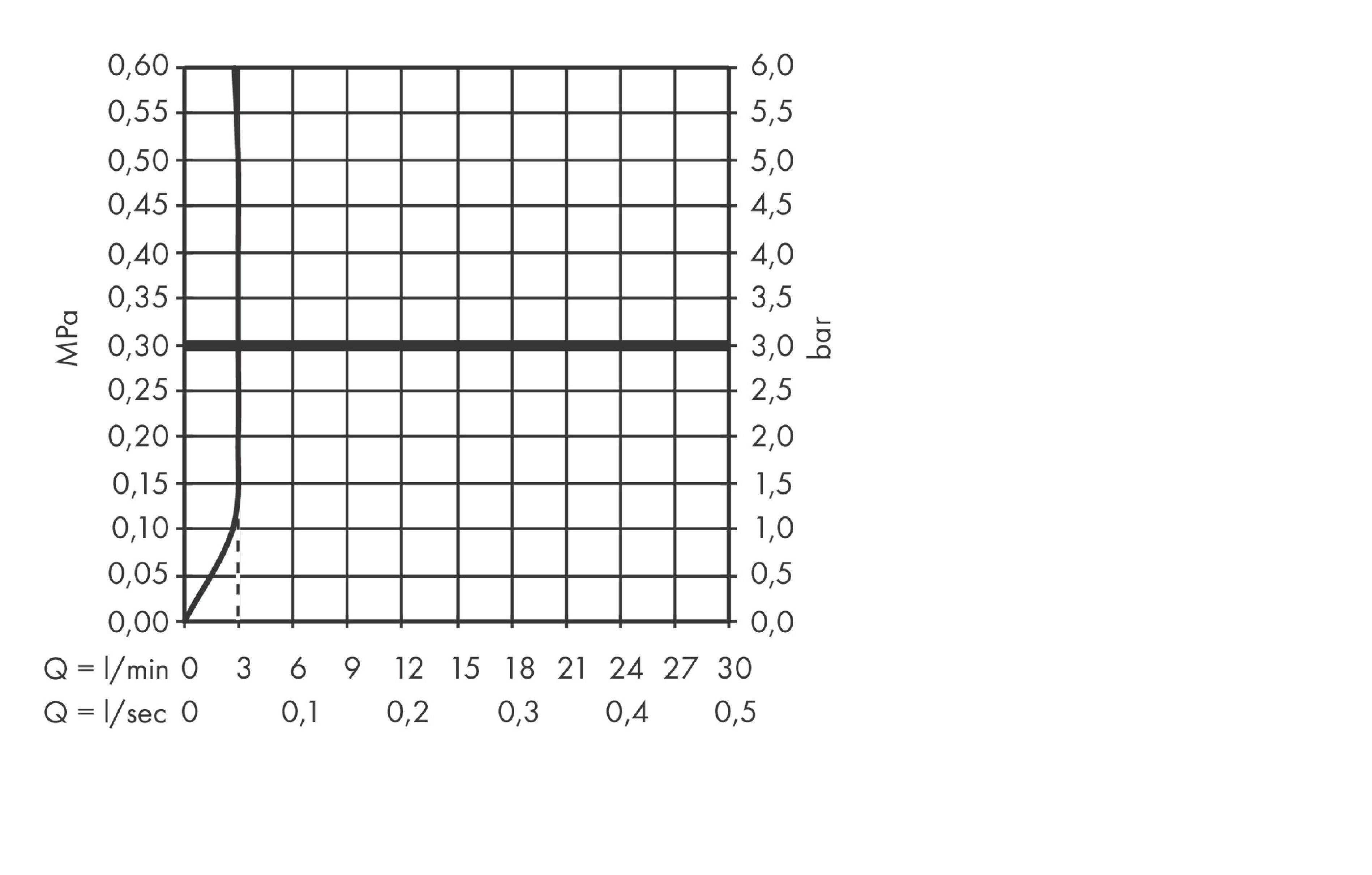

- maximum flow rate at 3 bar: 3,8 l/min
- ceramic valves hot/cold 90°
- pop-up waste set G 1¼
- connection type: G ½ connections
- connection dimension: DN15
- WELS SGP 2 Ticks BST-2020/029906/SET
Downloads
Technical drawings
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Optional accessories
Spare parts for build year 04/20
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
a | pop up waste51302000 |
c | fixation extension 35 mm13898000 |
b | pop up waste94139000 |
1 | spout 165 mm95568000 |
2 | aerator M18x1 (3,5 l/min)92716000 |
3 | pop up rod96676000 |
4 | escutcheon95569000 |
5 | handle for cold water39093000 |
6 | handle for hot water39094000 |
7 | O-ring 12x298214000 |
8 | hexagon socket screw M5x1298639000 |
9 | fixing set (Ø 32)13961000 |
10 | stop valve cpl.97357000 |
11 | nut92854000 |
12 | O-Ring 32x2,596364000 |
13 | O-ring 40x392634000 |
14 | shut off unit left closing94008000 |
15 | shut off unit right closing94009000 |
16 | lever collar97548000 |
17 | connection hose 450 mm M8x0,75 G½97443000 |
18 | O-ring 8x1,7597827000 |
19 | connection hose 450 mm M10x1 G3/896507000 |
20 | O-ring 7x1,598422000 |
Innovative technologies
More pleasure, more efficiency
Excellent user comfort
Saving resources with pleasure
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
ComfortZone
Excellent user comfort
More elbow room when washing hands, a comfortable way to wash hair or just fill containers: The better the tap fits the space, the more flexible the options become. We call the area between the tap and the ceramics the ComfortZone because you can use it however you like.
EcoSmart
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
