AXOR Citterio M2-hole single lever kitchen mixer 240 with swivel spout EcoSmart

Art. no. 34823000
Please try again.
Please try again.
Article features
- ComfortZone 240
- swivel range adjustable in 3 steps 110°, 150° or 360°
- flexible position of faucet controls, 2 tap holes with Ø 35 mm required
- normal spray
- connection dimension: DN15

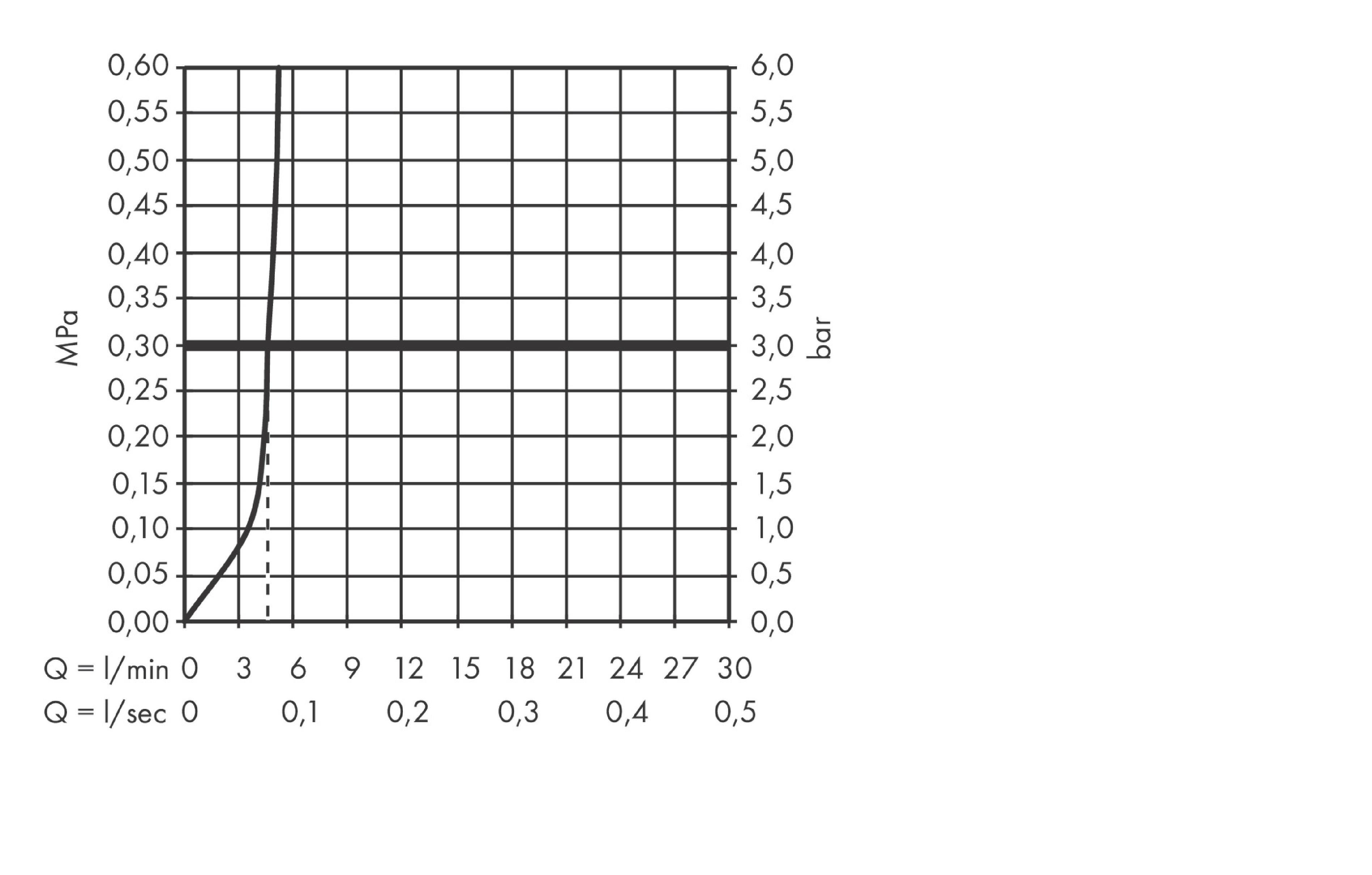

- maximum flow rate at 3 bar: 4,5 l/min
- ceramic cartridge
- connection type: G ⅜ connections
- temperature limitation adjustable
- not suitable for continuous flow water heaters
- EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible
- WELS SGP 2 Tick SKT/BT-2019/028265/SET
Downloads
Technical drawings
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Spare parts for build year 10/19
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
a | set of locating rings (60° / 80°)92259000 |
1 | spout cpl.98604000 |
2 | aerator M24x1 (5 l/min)95380000 |
3 | handle95902000 |
4 | screw cover96762000 |
5 | hollow set screw M6x898444000 |
6 | flange96763000 |
7 | nut97209000 |
8 | cartridge, assy95646001 |
9 | seal95008000 |
10 | set of locating rings (110° / 150°)98486000 |
11 | sealing set92646000 |
12 | axialring97558000 |
13 | O-ring 14x298129000 |
14 | sealing washer97825000 |
15 | support97523000 |
16 | fixing set (Ø 34)95049000 |
17 | lever collar97548000 |
18 | connection hose 600 mm M10x1 G3/897398000 |
19 | O-ring 8x1,7597827000 |
20 | connection hose 600 mm M10x195561000 |
21 | O-ring 7x1,598422000 |
22 | connection hose 900 mm M8x0,75 G3/898758000 |
23 | sealing set95581000 |
Innovative technologies
More pleasure, more efficiency
For more space at the kitchen sink
Less limescale, more joy
Save water, protect the clima
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
ComfortZone
For more space at the kitchen sink
Describes the large space between the kitchen tap and sink – vertically and horizontally. These high-quality taps are very user-friendly and have a flexible swivel area. For maximum room to move.
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
EcoSmart
Save water, protect the clima
This tap needs just 6 l/min – significantly less water than our standard taps and with no loss of comfort. And it also reduces energy costs, as just a fraction of the water used in standard taps needs to be heated. What a way to conserve resources!
Spray Types

NormalSpray
Air-enriched water spray with a really nice feel. Air is mixed in to create a fuller, lighter and softer spray that is an efficient help with every activity at the kitchen sink.
