AXOR CitterioSingle lever kitchen mixer Select 230 2jet with pull-out spray and sBox 2 ticks
Art. no. 39867009
Please try again.
Spare parts for build year 04/20
| Item no. |
|---|
| a | Grease90920000 |
| 1 | spout cpl.92583000 |
| 2 | O-ring 8x298112000 |
| 3 | handspray93410009 |
| 4 | cover92566000 |
| 5 | O-Ring 14x1,598201000 |
| 6 | nut92567000 |
| 7 | shut off unit98463000 |
| 8 | spray former93342000 |
| 9 | service tool95910000 |
| 10 | set of lever collars98365000 |
| 11 | O-ring 21x2,598211000 |
| 12 | kitchen mixer39861000 |
| 13 | hollow set screw M6x10 DIN 91696029000 |
| 14 | screw cover96338000 |
| 15 | flange98603000 |
| 16 | nut96461000 |
| 17 | O-Ring 32x298193000 |
| 18 | cartridge, assy92730000 |
| 19 | seal95008000 |
| 20 | O-ring 40x392634000 |
| 21 | support97523000 |
| 22 | fixing set (Ø 34)95049000 |
| 23 | lever collar97548000 |
| 24 | hose93191000 |
| 25 | connection hose 900 mm M8x0,75 G3/895372000 |
| 26 | O-ring 7x1,598422000 |
| 27 | non return valve DW 1096456000 |
| 28 | filter packing95291000 |
| 29 | set of adapters93395000 |
| 30 | connection hose 450 mm M10x1 G3/896507000 |
| 31 | O-ring 8x1,7597827000 |
| 32 | sealing set95581000 |
| 33 | squeezing connection96099000 |
| 34 | extension set43333000 |
Innovative technologies
Convenience at the touch of a button
For a tidier kitchen base unit
For more space at the kitchen sink
Flexibility at the kitchen sink
Less limescale, more joy
Select
Convenience at the touch of a button
Fans of user-friendliness can now conveniently start and stop the flow of water at the touch of a button. For accurate, ergonomic and easy water controls that can be operated with the back of the hand or an elbow.
sBox
For a tidier kitchen base unit
Ensures that the hose on pull-out kitchen taps is smoothly, silently, safely and securely pulled out and retracted. Thanks to the sBox, the pull-out spray can be extended to max. 76 cm. It fits into all standard base units.
ComfortZone
For more space at the kitchen sink
Describes the large space between the kitchen tap and sink – vertically and horizontally. These high-quality taps are very user-friendly and have a flexible swivel area. For maximum room to move.
Pull-out
Flexibility at the kitchen sink
More comfort and room to move: Pull-out sprays or pull-out spouts expand the operating radius around the kitchen sink to take water to exactly where it’s needed in just one motion.
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

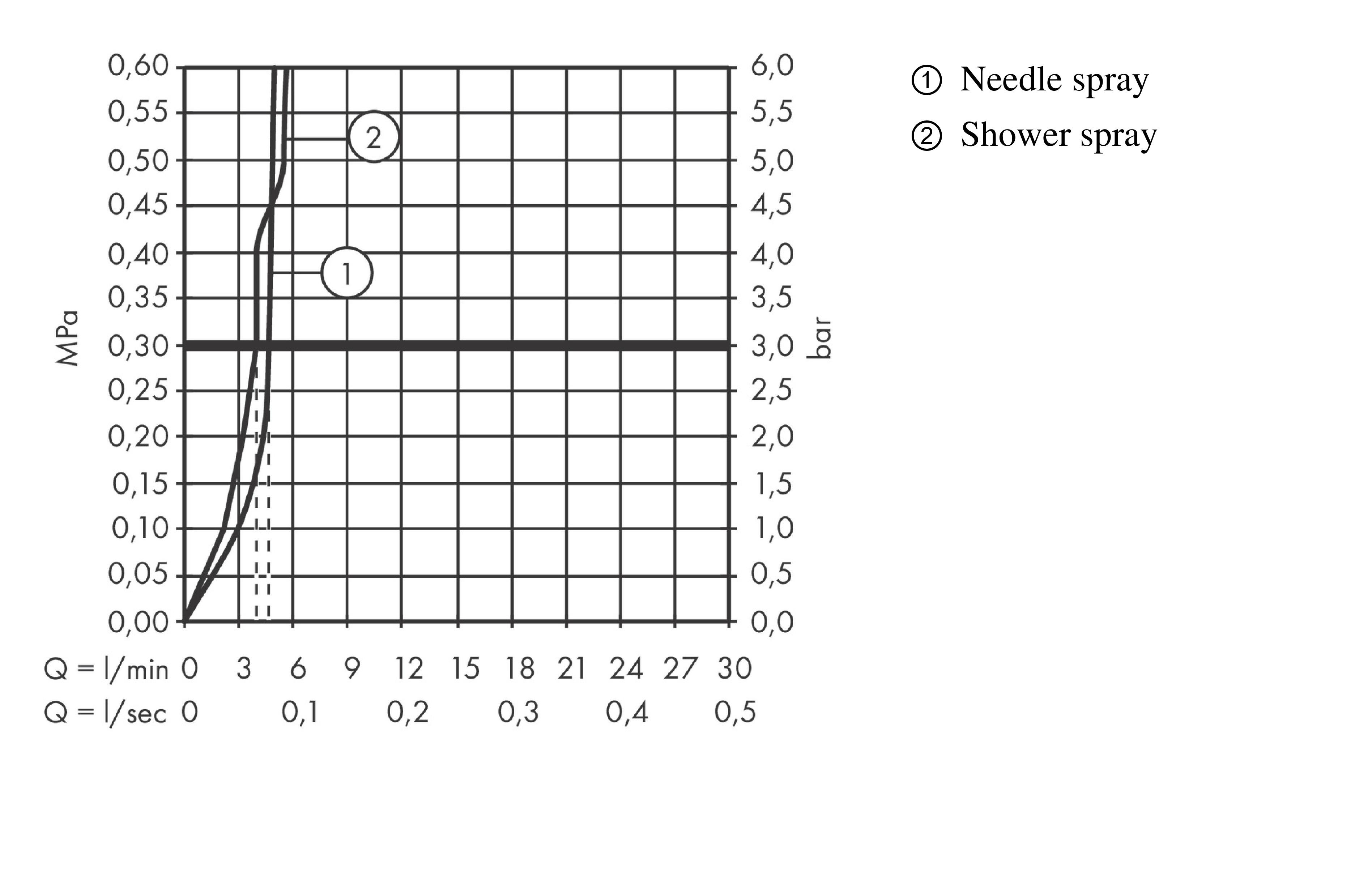

Spray Types
