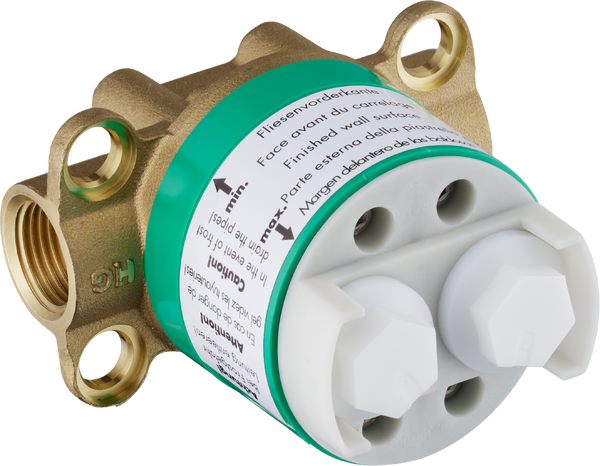

AXOR iBox universalBasic set with shut-off unit
Art. no. 01750180
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Spare parts for build year 10/17
| Item no. |
|---|
| a | service set92874000 |
| 1 | flushing unit complete98560000 |
| 2 | hexagon socket screw M6x6097785000 |
| 3 | plug Ø 12 mm97611000 |
| 4 | O-ring 11x298127000 |
| 5 | plug Ø 15 mm97611001 |
| 6 | O-ring 9x298119000 |
| 7 | sealing foil96445000 |
| 8 | displacing ring98797000 |
| 9 | reduction coupling97759000 |
| 10 | reduction coupling97759980 |
| 11 | seal97739000 |
| 12 | extension 25 mm13595000 |
| 13 | set of fixing screws97747000 |
| 14 | extension 10 mm for iBox universal with shut-off unit92332000 |
| 15 | fit-up aid93500000 |
