AXOR Uno

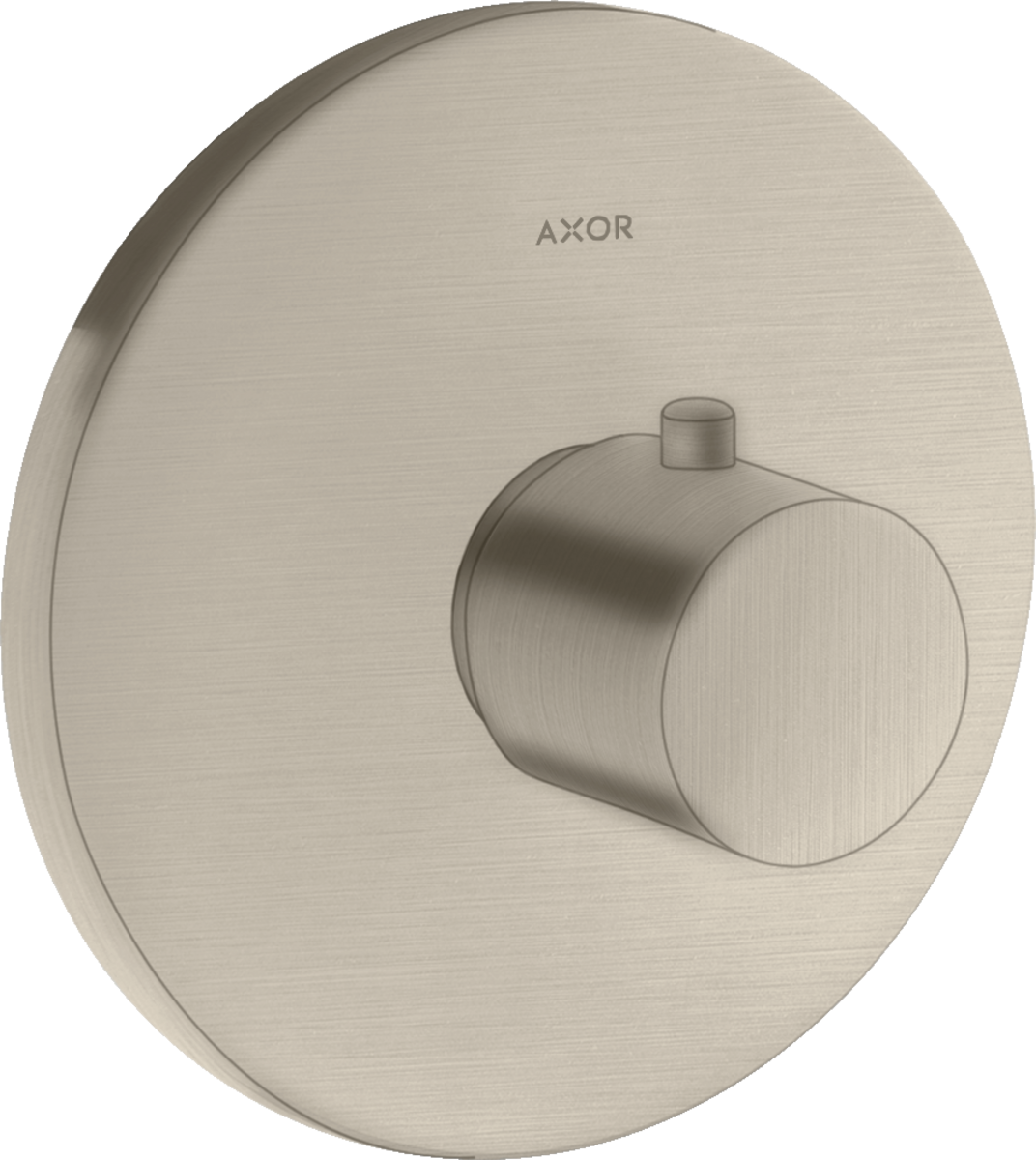

Thermostat HighFlow for concealed installation

Thermostat HighFlow for concealed installation
 View in AR
 360° view
Finish Brushed Nickel

Art. no. 38715820

Article features

  • 1 function
  • thermostat cartridge
  • maximum flow rate at 3 bar: 59 l/min
  • flow rate upper outlet: 42 l/min
  • flow rate lower outlet: 42 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • with silencer
  • connection type: basic set

Downloads

Planning data

Download all Planning data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Required parts - Select variant

Basic set
AXOR iBox universal 2

Basic set
Adapter plate for iBox universal 2
hansgrohe

Adapter plate for iBox universal 2
Basic set
AXOR iBox universal

Basic set

Optional accessories

Fastening rail set for iBox universal

Fastening rail set for iBox universal
Extension 25 mm for basic set iBox universal

Extension 25 mm for basic set iBox universal
Extension element round 1-hole

Extension element round 1-hole

Innovative technologies

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Thermostat

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
