Basic set for single lever basin mixer for concealed installation wall-mounted

Basic set for single lever basin mixer for concealed installation wall-mounted
 View in AR
 360° view

Art. no. 13623180

Article features

  • variable positioning of the mixer system, can be left or right of the spout
  • easy orientation due to support surfaces for the spirit level
  • with building protection cover against contamination during assembly
  • with dimension indication for exact determination of the installation depth
  • with pre-mounted fastening lugs for mounting in drywall and solidwall
  • sound-decoupled installation
  • connection dimension: DN15
  • minimum mounting depth: 44 mm
  • maximum mounting depth: 72 mm

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Optional accessories

Extension set 25 mm for single lever basin mixer wall-mounted

Extension set 25 mm for single lever basin mixer wall-mounted

Find the right spare part

 Basic set for single lever basin mixer for concealed installation wall-mounted
+
_
{{part.number}}
{{part.text}} Art. no.  {{part.articleNumber}}
{{part.price}} Excluding VAT

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.

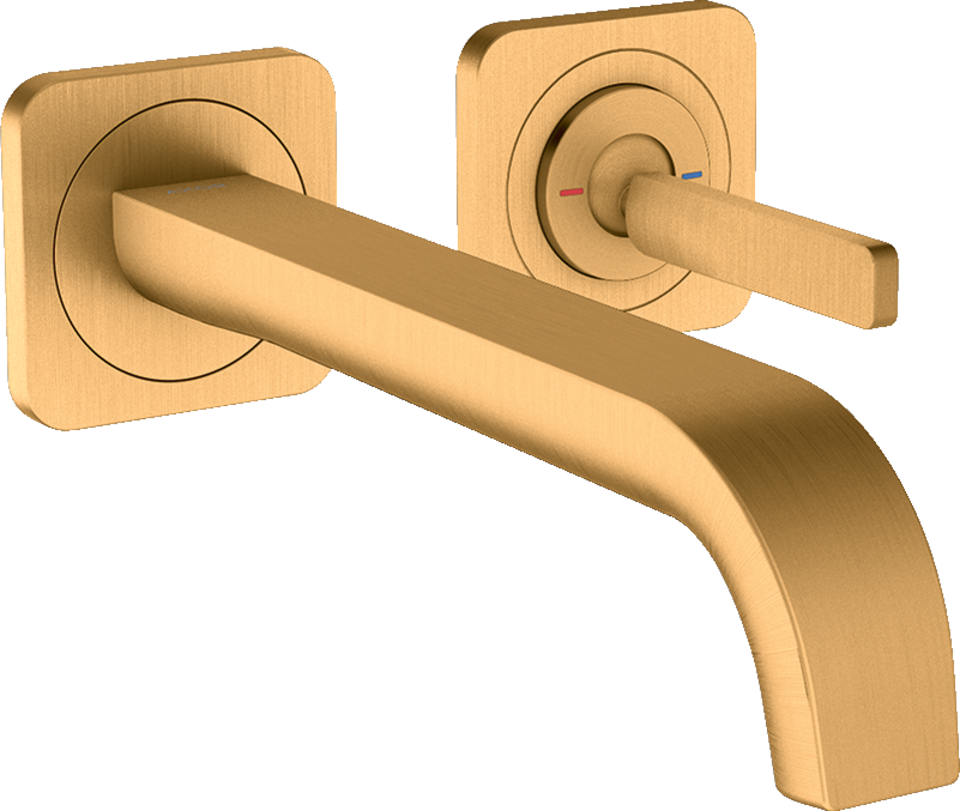

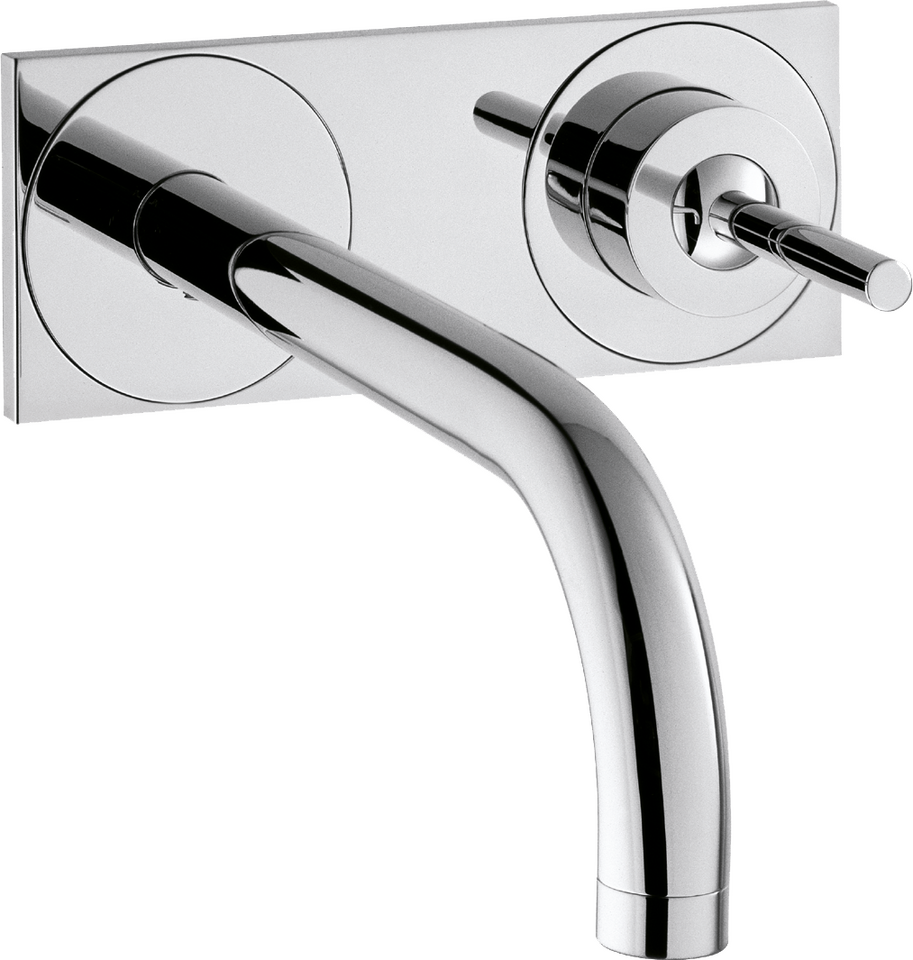

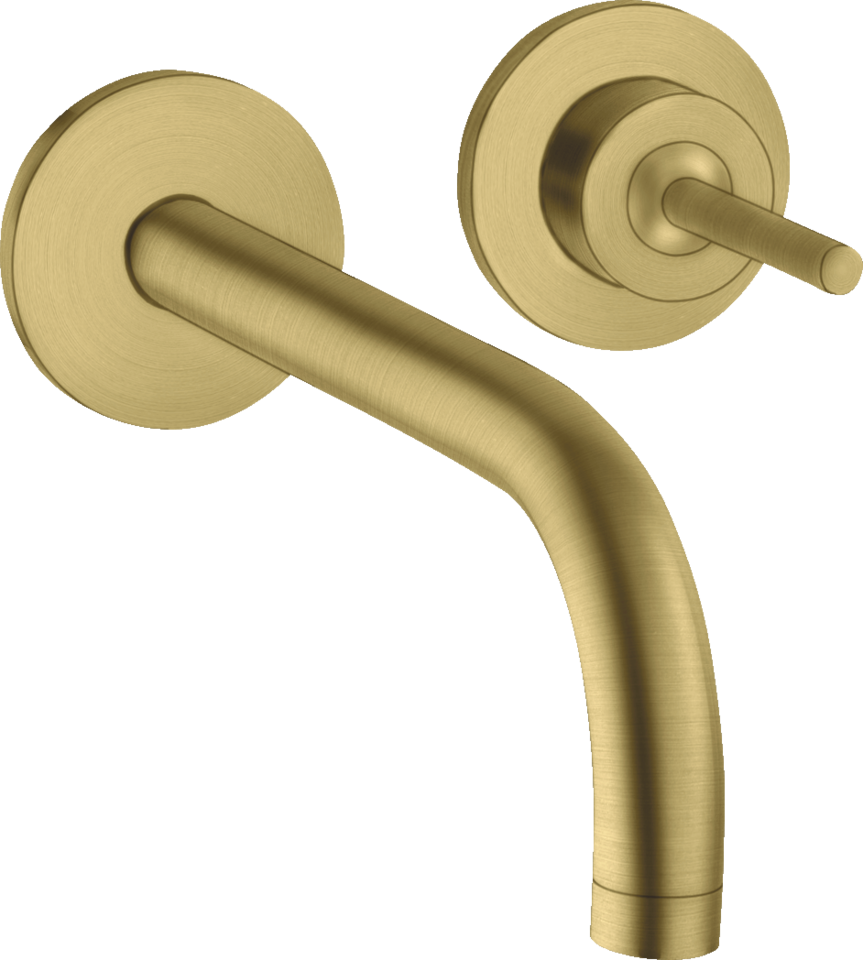

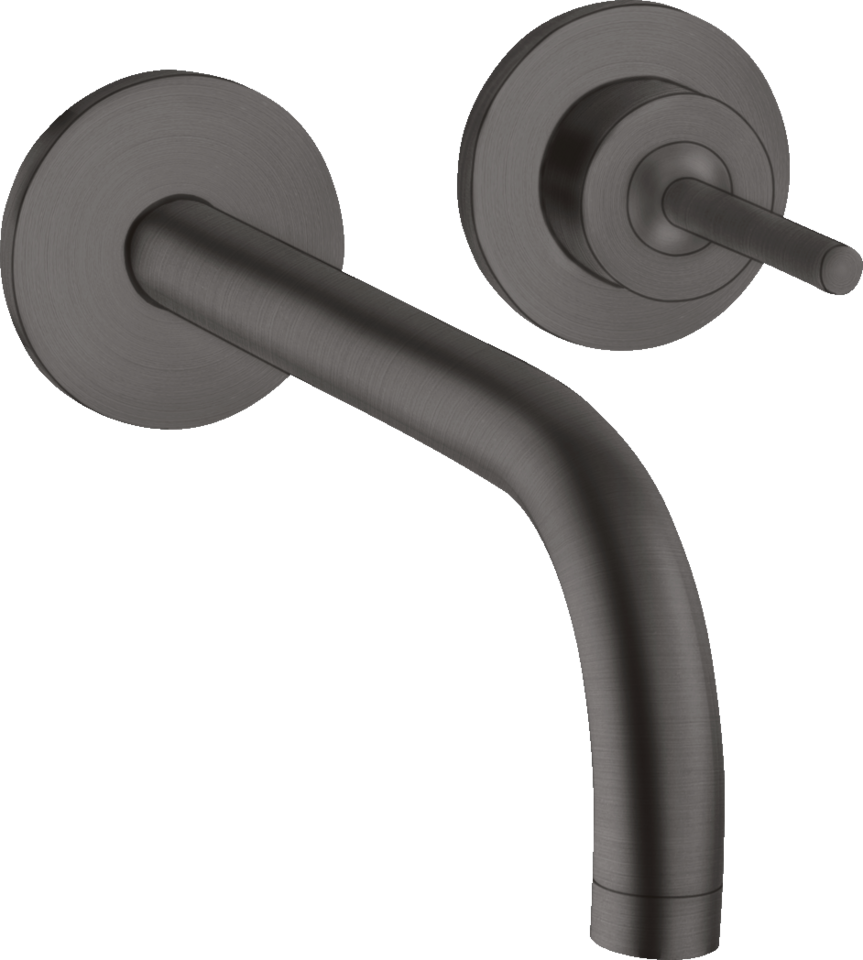

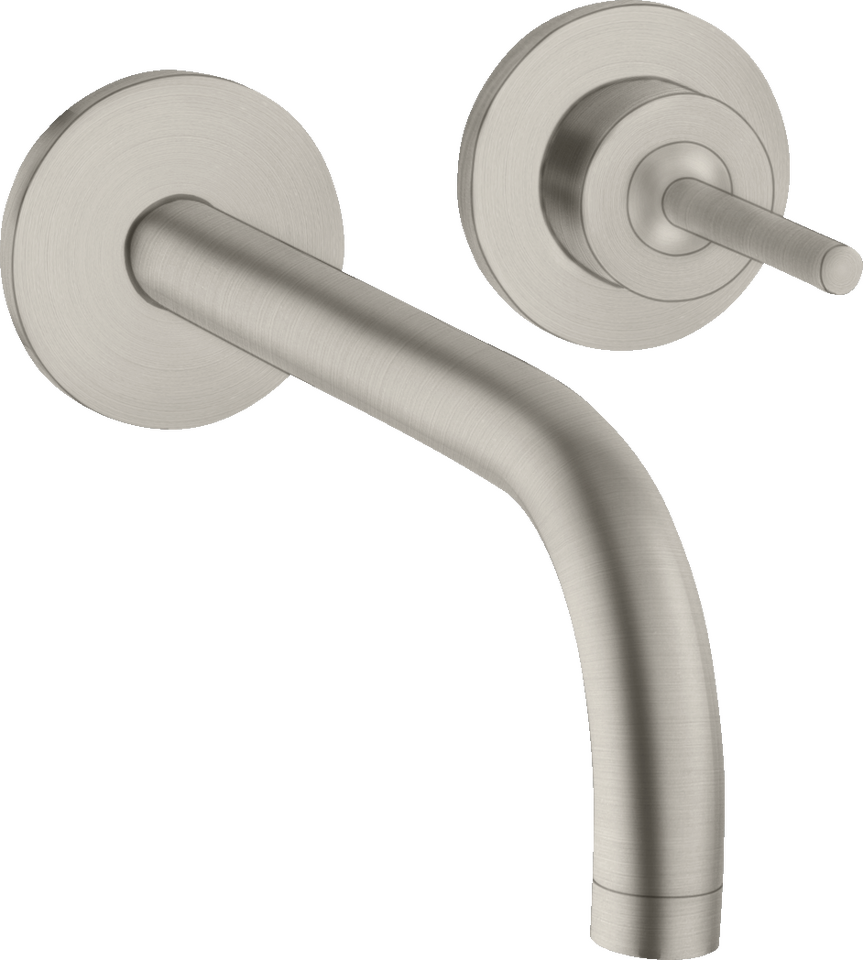

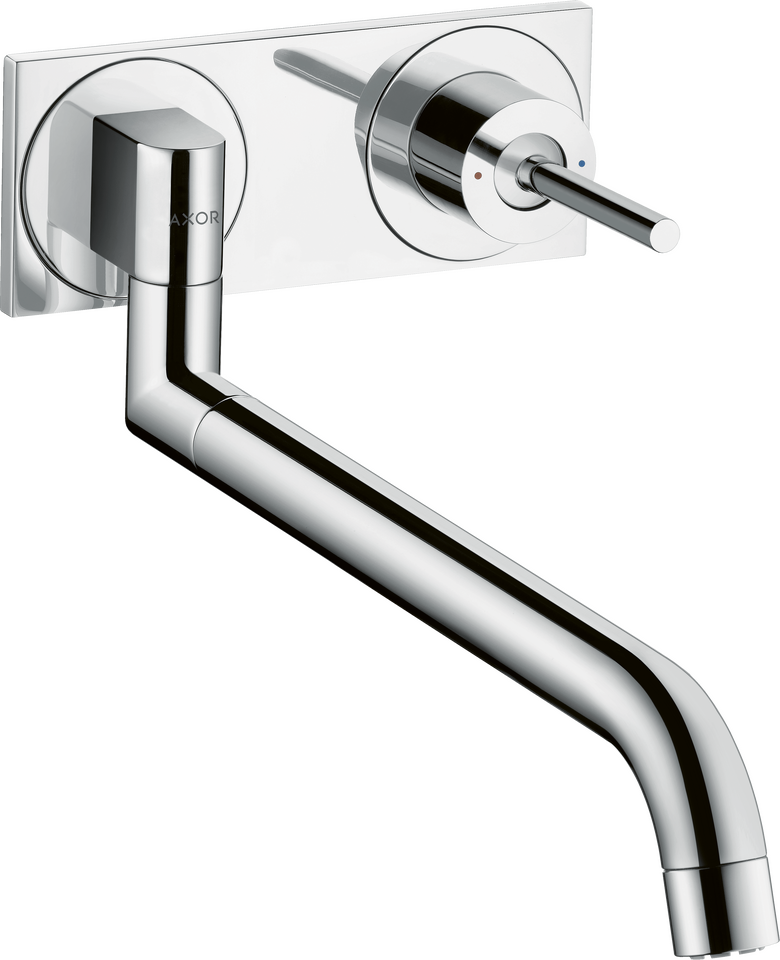

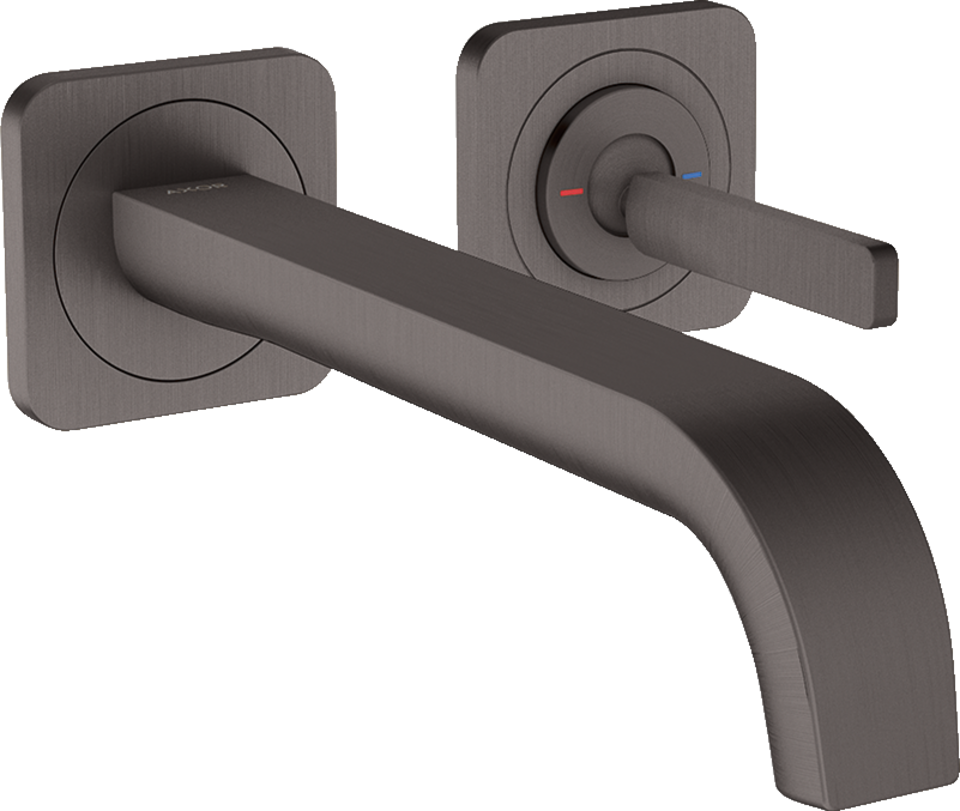

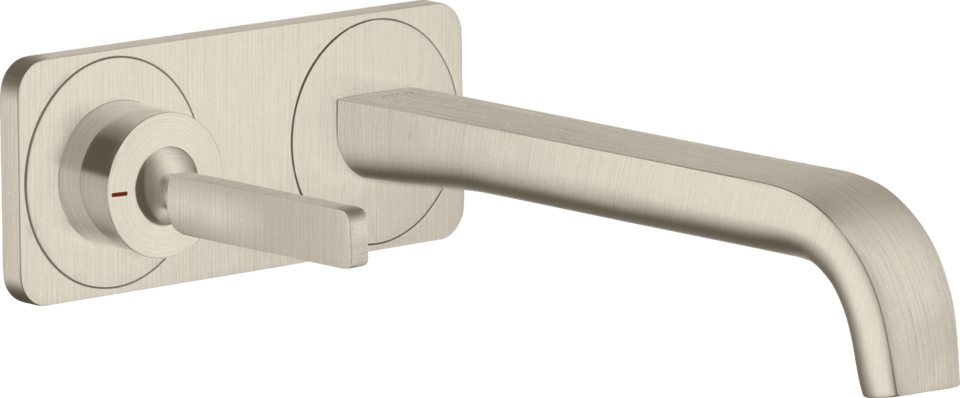

Similar products
