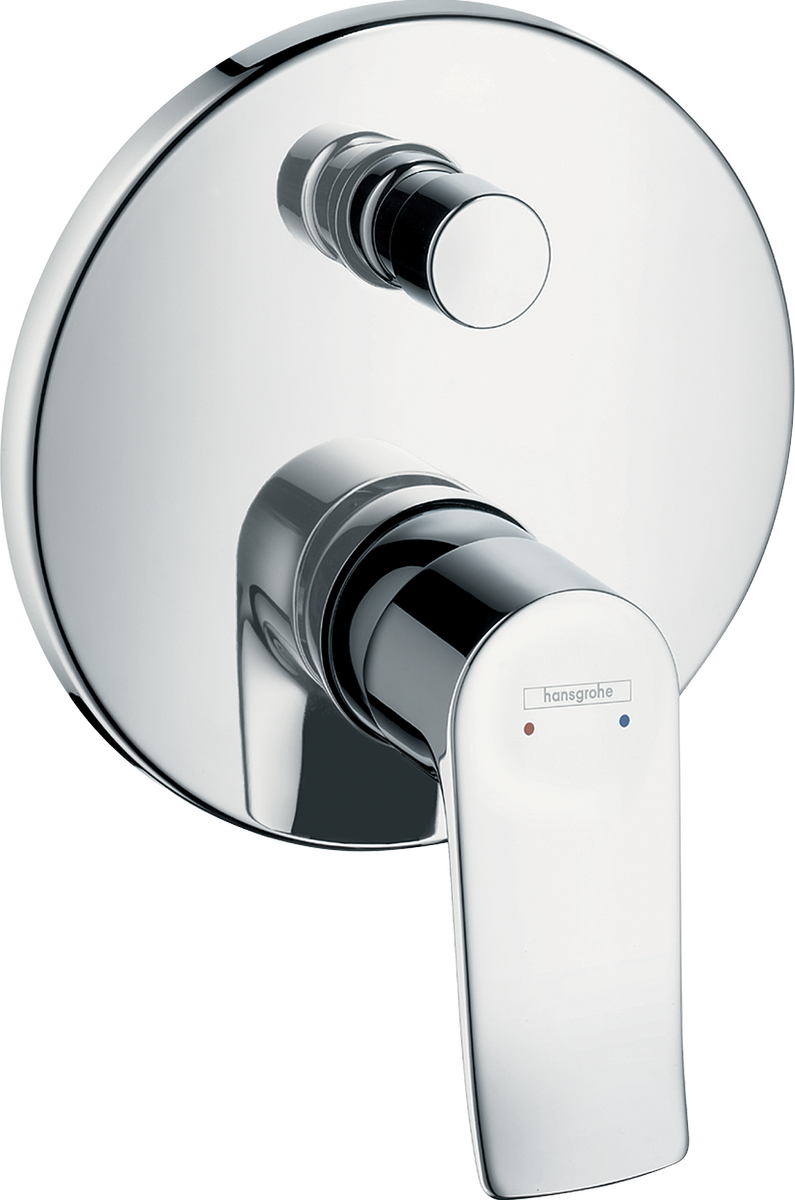

hansgrohe MetrisSingle lever bath mixer for concealed installation with integrated security combination according to EN1717 for iBox universal
Art. no. 31487000
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Required parts - Select variant
Optional accessories
Spare parts for build year 01/16
| Item no. |
|---|
| a | concealed item01800180 |
| 1 | handle95519000 |
| 2 | screw cover96338000 |
| 3 | diverter knob98795000 |
| 4 | hollow set screw M4x1097667000 |
| 5 | escutcheon Ø 150 mm98791000 |
| 6 | O-ring 43x398418000 |
| 7 | O-ring 23x398142000 |
| 8 | sleeve98790000 |
| 9 | sleeve98794000 |
| 10 | holder for escutcheon98793000 |
| 11 | set of fixing screws96454000 |
| 12 | nut98796000 |
| 13 | O-ring 30x1,598433000 |
| 14 | O-ring 39x1,598400000 |
| 15 | cartridge, assy92730000 |
| 16 | locking screw for handle95140000 |
| 17 | seal95008000 |
| 18 | selector assy95014000 |
| 19 | O-ring 16x2,398207000 |
| 20 | O-ring 20x2,592602000 |
| 21 | set of screws96525000 |
| 22 | non return valve96655000 |
| 23 | O-ring 19x298426000 |
| 24 | vacuum breaker96753000 |
| 25 | O-Ring 22x298185000 |
| 26 | O-ring 16x298133000 |
| 27 | noise reduction94073000 |
| 28 | extension 25 mm13595000 |
| 29 | set of fixing screws97747000 |
| 30 | extension 22 mm (Ø 150 mm)13597000 |
