hansgrohe RainDrain Compact

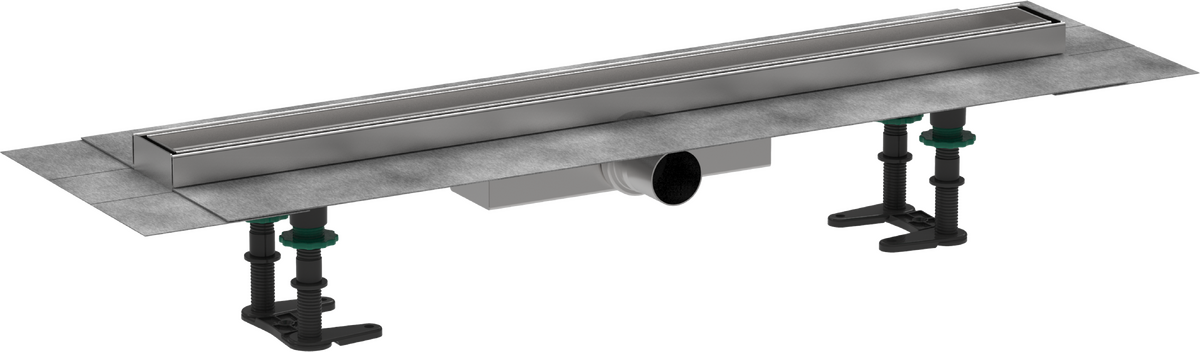

Complete set shower drain 700 tileable for flat installation

Complete set shower drain 700 tileable for flat installation
product.closeup.image.alt
product.closeup.image.alt
1 / 3
 View in AR
 360° view
Change variant
hansgrohe RainDrain Compact
Select variant
Complete set shower drain 700 tileable for flat installation
Complete set shower drain 600 tileable for flat installation
Complete set shower drain 800 for flat installation
Complete set shower drain 900 tileable for flat installation
Complete set shower drain 1000 tileable for flat installation
Complete set shower drain 1200 for flat installation

Art. no. 56165000

Article features

  • consists of: tileable grate, installation set, trap, grate removal tool, pre-assembled sealing membrane
  • grate material: Stainless Steel 304 (1.4301)
  • material installation set: Stainless Steel 304 (1.4301)
  • pre-assembled sealing membrane
  • water seal: 30 mm
  • connection diameter: DN40
  • direction of outlet: horizontal
  • easy to clean surface
  • height adjustable installation set
  • up to 27 l/min drainage capacity
  • where to use: renovation, new construction
  • tile thickness: up to 18 mm
  • removable water seal
  • easy to clean siphon
  • grate removal tool allows easy removal of the finish set
  • type of odour seal: fluid
  • minimal construction height 43 mm
  • material siphon: ABS
  • mounting type: free in the floor
  • tileable
  • tile inlay depth: 12 mm
  • suitable for primary drainage
  • minimal installation height: 63 mm

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Find the right spare part

RainDrain Compact Complete set shower drain 700 tileable for flat installation
+
_
{{part.number}}
{{part.text}} Art. no.  {{part.articleNumber}}
{{part.price}} Excluding VAT

Innovative technologies

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.

Easy to clean siphon

Modern odor trap with a high drainage capacity can be removed for cleaning, even after it has been securely installed in the flooring. Any remaining dirt or hair is easy to remove under running water.

QuickClean

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.

Easy clean siphon

Easy to clean siphon

Modern odor trap with a high drainage capacity can be removed for cleaning, even after it has been securely installed in the flooring. Any remaining dirt or hair is easy to remove under running water.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
