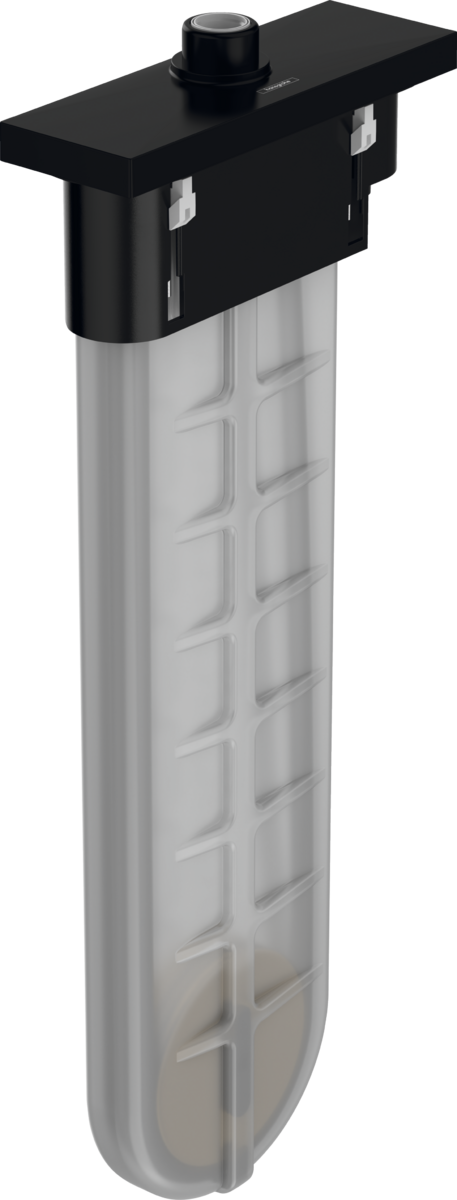

hansgrohe sBox
Finish set square

product.image.alt
 View in AR
 360° view
Finish Matt Black

Art. no. 28010670

Log in now
Remember product Product noted
Product saved for 30 daysAdd to notepad
The product could not be saved.
Please try again.
Compare products Product added
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.

Article features

  • consists of: hose box, shower hose, escutcheon
  • suitable for rim or tile mounted installation
  • 1 function
  • sBox for quiet, smooth and protected hose guidance
  • connection dimension: DN15
  • no additional maintenance opening required
  • bath rim width at least 100 mm
  • clamping range: 0 - 30 mm
  • maximum pull-out length of hand shower 1.45 m
  • removable for service at any time
  • protected against backflow, according to DIN EN 1717
  • maximum flow rate at 3 bar: 9,5 l/min

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Flow diagram

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required parts

Rim and tile mounted bath basic set
hansgrohe sBox

Rim and tile mounted bath basic set

Optional accessories

Installation plate for tile mounted installation
hansgrohe sBox

Installation plate for tile mounted installation
Mounting angle set for installation plate for tile mounted installation
hansgrohe sBox

Mounting angle set for installation plate for tile mounted installation

Spare parts for build year 09/20

To the spare parts catalog
To the spare parts catalog
product.spareparts.image.alt
Item no. DescriptionArticle no.Description and article no.
a concealed item13560180
1 sBox94679000
2 seal98058000
3 insert for shower holder96942000
4 hose guide94504000
5 nut97584670
6 escutcheon93504670
7 O-Ring 32x298193000
8 connection angel94506000
9 O-ring 9x298119000
10 O-ring 7x1,598422000
11 non return valve DW 1096456000
12 installation frame93908000
