sBox
Select variant
Finish set square
Finish set oval
Finish Chrome

Art. no. 28012000

Article features

  • consists of: hose box, shower hose, escutcheon
  • suitable for rim or tile mounted installation
  • 1 function
  • sBox for quiet, smooth and protected hose guidance
  • connection dimension: DN15
  • no additional maintenance opening required
  • bath rim width at least 100 mm
  • clamping range: 0 - 30 mm
  • maximum pull-out length of hand shower 1.45 m
  • removable for service at any time
  • protected against backflow, according to DIN EN 1717
  • maximum flow rate at 3 bar: 9,5 l/min

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Flow diagram

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required parts

Rim and tile mounted bath basic set
sBox

Rim and tile mounted bath basic set

Optional accessories

Rim mounted adapter 25°
hansgrohe

Rim mounted adapter 25°
Mounting angle set for installation plate for tile mounted installation
sBox

Mounting angle set for installation plate for tile mounted installation
Installation plate for tile mounted installation
sBox

Installation plate for tile mounted installation

Spare parts for build year 04/19

To the spare parts catalog
To the spare parts catalog
product.spareparts.image.alt
Item no. DescriptionArticle no.Description and article no.
a concealed item15490180
1 sBox94679000
2 seal98058000
3 insert for shower holder96942000
4 hose guide94504000
5 nut97584000
6 escutcheon93504000
7 O-Ring 32x298193000
8 connection angel94506000
9 O-ring 9x298119000
10 non return valve DW 1096456000

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.

Similar products

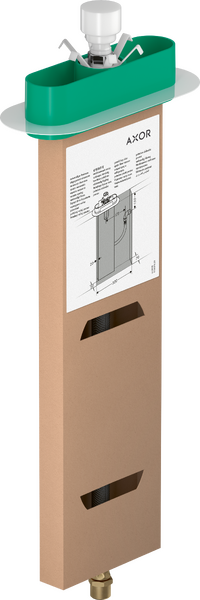

Rim and tile mounted bath basic set
sBox

Rim and tile mounted bath basic set

Art. no. 15490180
 View in AR
 360° view

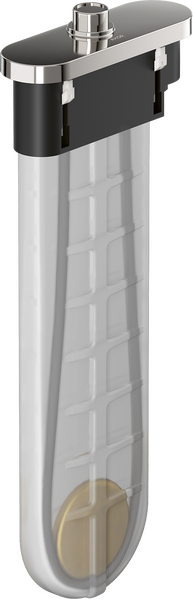

Finish set oval
