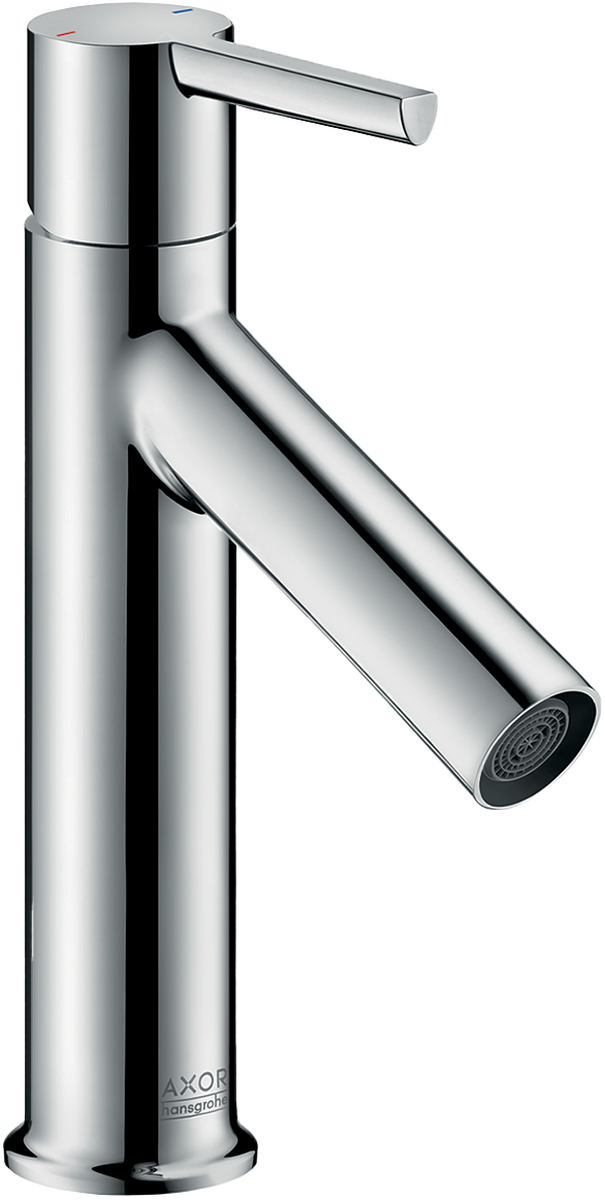

AXOR StarckSingle lever basin mixer 100 with lever handle and pop-up waste set 3 ticks

Art. no. 12002009
Please try again.
Please try again.
Article features
- consists of: single lever basin mixer, waste set
- ComfortZone 100
- projection: 103 mm
- spout height: 95 mm
- maximum flow rate at 3 bar: 1,9 l/min
- ceramic cartridge
- temperature limitation adjustable
- pop-up waste set G 1¼
- connection type: G ½ connections
- connection dimension: DN15
- WELS SGP 3 Ticks BST-2020/029769/SET
Downloads
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Spare parts for build year 04/20
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
a | pop up waste51302000 |
b | lever arm 340mm (ball-Ø12mm)96324000 |
c | fixation extension 35 mm13898000 |
d | O-ring 7x1,598422000 |
1 | handle92385000 |
2 | screw cover96762000 |
3 | hollow set screw M6x898444000 |
4 | flange98863000 |
5 | nut95178000 |
6 | O-Ring 22x298185000 |
7 | cartridge, assy95973000 |
8 | seal98865000 |
9 | adapter for cartridge98866000 |
10 | O-Ring 23x2,598183000 |
11 | spray former93783000 |
12 | special tool95290000 |
13 | O-ring 34x498155000 |
14 | fixing set (Ø 32)13961000 |
15 | lever collar97548000 |
16 | connection hose 600 mm M8x0,75 G1/292482000 |
17 | O-ring 6,6x1,693019000 |
18 | pull rod97158000 |
