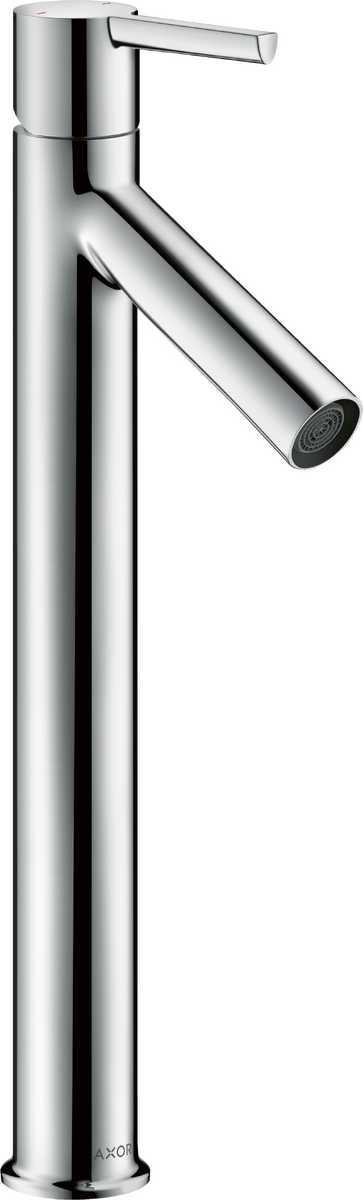

AXOR StarckSingle lever basin mixer 250 with lever handle for wash bowls with waste set 2 ticks

Art. no. 12103009
Please try again.
Please try again.
Article features
- consists of: single lever basin mixer, waste set
- ComfortZone 250
- projection: 107 mm
- spout height: 248 mm
- handle variant: lever handle
- spray type: normal spray
- maximum flow rate at 3 bar: 3,8 l/min
- ceramic cartridge
- temperature limitation adjustable
- non-closing waste set
- connection type: G ½ connections
- connection dimension: DN15
- WELS SGP 2 Tick BST-2020/028833/SLS
Downloads
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Spare parts for build year 04/20
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
b | fixation extension 35 mm13898000 |
a | pop up waste51301000 |
1 | handle92385000 |
2 | screw cover96762000 |
3 | hollow set screw M6x898444000 |
4 | flange98863000 |
5 | nut95178000 |
6 | O-Ring 22x298185000 |
7 | cartridge, assy95973000 |
8 | seal98865000 |
9 | adapter for cartridge98866000 |
10 | O-Ring 23x2,598183000 |
11 | aerator M24x1 (3,5 l/min)92522000 |
12 | special tool95290000 |
13 | O-ring 34x498155000 |
14 | fixing set (Ø 32)13961000 |
15 | lever collar97548000 |
16 | connection hose 900 mm M8x0,75 G½97489000 |
17 | O-ring 7x1,598422000 |
Innovative technologies
More pleasure, more efficiency
Excellent user comfort
Saving resources with pleasure
Less limescale, more joy
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
ComfortZone
Excellent user comfort
More elbow room when washing hands, a comfortable way to wash hair or just fill containers: The better the tap fits the space, the more flexible the options become. We call the area between the tap and the ceramics the ComfortZone because you can use it however you like.
EcoSmart
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
Five-year manufacturer’s guarantee
5
year manufacturer's guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
